STP80NF12FP, STP80NF12 N - CHANNEL POWER MOSFET

STP80NF12FP Description

STB80NF12 STW80NF12 STP80NF12 STP80NF12FP N-CHANNEL 120V-0.013Ω-80A TO-220/TO-247/TO-220FP/D²PAK STripFET™ II POWER MOSFET TYPE STB80NF12 STP80NF12 ST.
This MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gate char.

STP80NF12FP Applications

* It is also intended for any applications with low gate drive requirements. INTERNAL SCHEMATIC DIAGRAM APPLICATIONS s HIGH-EFFICIENCY DC-DC CONVERTERS s UPS AND MOTOR CONTROL ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID(
* ) ID IDM(
* ) Ptot dv/dt (1) EAS (2) VISO Tstg Tj Parameter Drai

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP80NF12FP, STP80NF12. Please refer to the document for exact specifications by model.

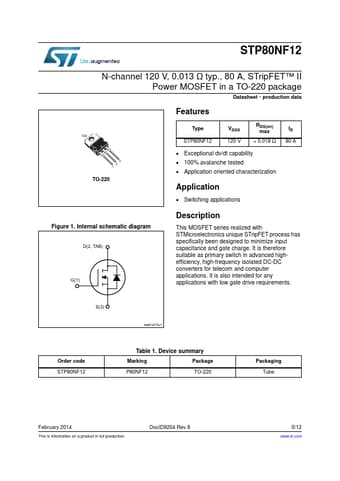

datasheet Preview Page 2 datasheet Preview Page 3
