STP80NF55-08AG N-CHANNEL POWER MOSFET

STP80NF55-08AG Description

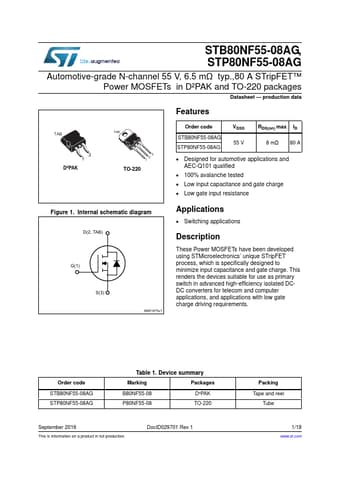

STB80NF55-08AG, STP80NF55-08AG Automotive-grade N-channel 55 V, 6.5 mΩ typ.,80 A STripFET™ Power MOSFETs in D²PAK and TO-220 packages Datasheet These Power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitanc.

STP80NF55-08AG Features

* TAB 3 1 D2PAK TAB 3 2 1 TO-220 Order code STB80NF55-08AG STP80NF55-08AG VDSS 55 V RDS(on) max ID 8 mΩ 80 A

STP80NF55-08AG Applications

* and AEC-Q101 qualified
* 100% avalanche tested
* Low input capacitance and gate charge
* Low gate input resistance Figure 1. Internal schematic diagram ' 7$%
*  6  $0Y Applications
