STP7NB80, N-CHANNEL MOSFET

® STP7NB80 STP7NB80FP N - CHANNEL 800V - 1.2Ω - 6.5A - TO-220/TO-220FP PowerMESH™ MOSFET TYPE ST P7NB80 ST P7NB80FP s s s s s V DSS 800 V 800 V R .
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

STP7NB80_STMicroelectronics.pdf

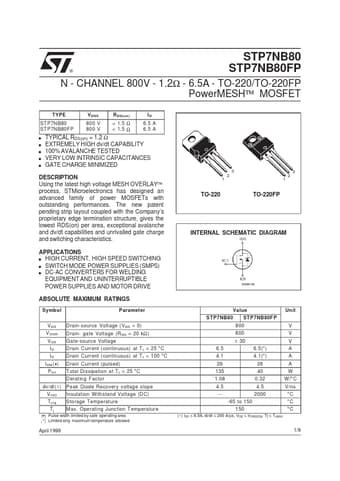

STP7NB80 Datasheet Preview — Preview of STP7NB80 PDF

Datasheet Details

Part number:

STP7NB80

Manufacturer:

STMicroelectronics ↗

File Size:

106.58 KB

Description:

N-CHANNEL MOSFET

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM (
* ) P tot dv/dt( 1 ) V ISO Ts tg Tj Parameter Drain-source Voltage
