STP7NB60FP, STP7NB60, N - CHANNEL ENHANCEMENT MODE PowerMESH MOSFET

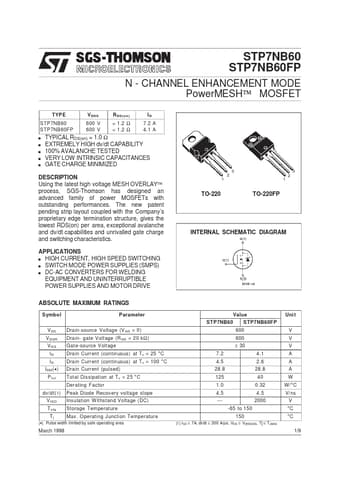

STP7NB60 STP7NB60FP N - CHANNEL ENHANCEMENT MODE PowerMESH™ MOSFET TYPE STP7NB60 STP7NB60F P s s s s s V DSS 600 V 600 V R DS(on) < 1.2 Ω < 1.2 Ω I.
Using the latest high voltage MESH OVERLAY™ process, SGS-Thomson has designed an advanced family of power MOSFETs with outstanding performances.

STP7NB60_STMicroelectronics.pdf

STP7NB60FP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP7NB60FP, STP7NB60. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STP7NB60FP, STP7NB60

Manufacturer:

STMicroelectronics ↗

File Size:

115.50 KB

Description:

N - CHANNEL ENHANCEMENT MODE PowerMESH MOSFET

Note:

This datasheet PDF includes multiple part numbers: STP7NB60FP, STP7NB60.
Please refer to the document for exact specifications by model.

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID IDM (
* ) P t ot dv/dt( 1) V ISO T stg Tj March 1998 Parameter Drain-sour
