STP6NK60ZFP, STP6NK60Z N-CHANNEL MOSFET

STP6NK60ZFP Description

STB6NK60Z - STB6NK60Z-1 STP6NK60ZFP - STP6NK60Z N-channel 600 V - 1 Ω - 6 A - TO-220/TO-220FP/D2PAK/I2PAK Zener-Protected SuperMESH™ Power MOSFET Fea.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

STP6NK60ZFP Features

* Type STB6NK60Z STB6NK60Z-1 STP6NK60ZFP STP6NK60Z VDSS 600 V 600 V 600 V 600 V RDS(on) ID PW < 1.2 Ω 6 A 110 W < 1.2 Ω 6 A 110 W < 1.2 Ω 6 A 30 W < 1.2 Ω 6 A 110 W
* Extremely high dv/dt capability
* 100% avalanche tested

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP6NK60ZFP, STP6NK60Z. Please refer to the document for exact specifications by model.

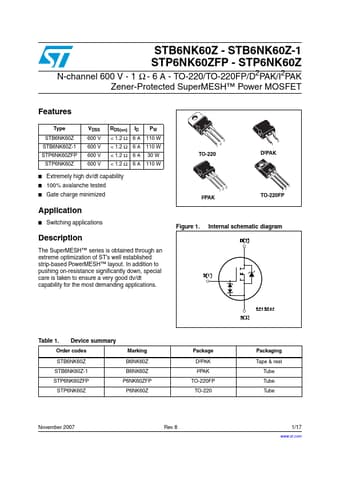

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP6NK60ZFP, STP6NK60Z
Manufacturer
STMicroelectronics ↗
File Size
440.79 KB
Datasheet
STP6NK60Z_STMicroelectronics.pdf
Description
N-CHANNEL MOSFET
Note
This datasheet PDF includes multiple part numbers: STP6NK60ZFP, STP6NK60Z.
Please refer to the document for exact specifications by model.
