STP3NA60 - N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

STP3NA60 Description

STP3NA60 STP3NA60FI N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR TYPE STP3NA60 STP3NA60FI s s s s s s s VDSS 600 V 600 V R DS(on) <4Ω <4Ω .
This series of POWER MOSFETS represents the most advanced high voltage technology.

STP3NA60 Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE ABSOLUTE MAXIMUM RATINGS Symbol Parameter ISOWATT220 INTERNAL SCHEMATIC DIAGRAM Value STP3NA60 STP3NA60FI 600 600 ± 30 o Unit V DS

📥 Download Datasheet

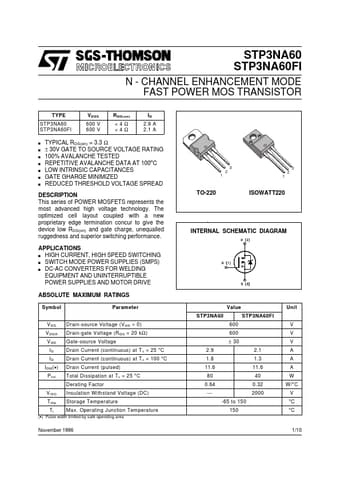

Preview of STP3NA60 PDF
datasheet Preview Page 2 datasheet Preview Page 3
