STP3NK100Z - N-channel Power MOSFET

STP3NK100Z Description

STF3NK100Z - STD3NK100Z STP3NK100Z N-channel 1000V - 5.4Ω - 2.5A - TO-220 - TO-220FP - DPAK Zener-protected SuperMESH™ Power MOSFET .
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

STP3NK100Z Features

* Type STF3NK100Z STP3NK100Z STD3NK100Z
* VDSS 1000V 1000V 1000V RDS(on) Max < 6Ω < 6Ω < 6Ω ID 2.5A 2.5A 2.5A PTOT 25W 90W 90W TO-220 1 2 1 3 2 3 TO-220FP Extremely high dv/dt capability 3 100% avalanche tested Gate charge minimized Very low intrinsic capacitances

📥 Download Datasheet

Preview of STP3NK100Z PDF

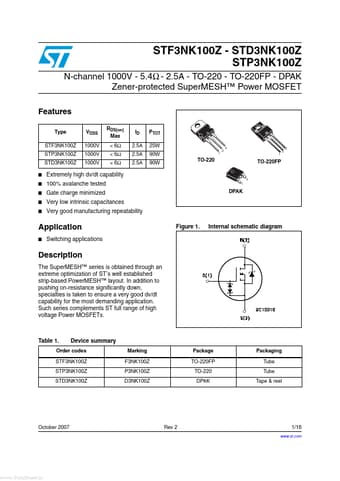

datasheet Preview Page 2 datasheet Preview Page 3
