STP11NM60 N-CHANNEL Power MOSFET

STP11NM60 Description

www.DataSheet4U.com STP11NM60 - STP11NM60FP STB11NM60 - STB11NM60-1 N-CHANNEL 600V - 0.4Ω-11A TO-220/TO-220FP/D2PAK/I2PAK MDmesh™Power MOSFET TYPE ST.
The MDmesh™ is a new revolutionary MOSFET technology that associates the Multiple Drain process with the Company’s PowerMESH™ horizontal layout.

STP11NM60 Applications

* The MDmesh™ family is very suitable for increasing power density of high voltage converters allowing system miniaturization and higher efficiencies. ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM ( ) PTOT dv/dt(1) VISO Tstg Tj May 2003 Parameter Drain-source Voltage (VGS = 0) Drain-gate Volt

📥 Download Datasheet

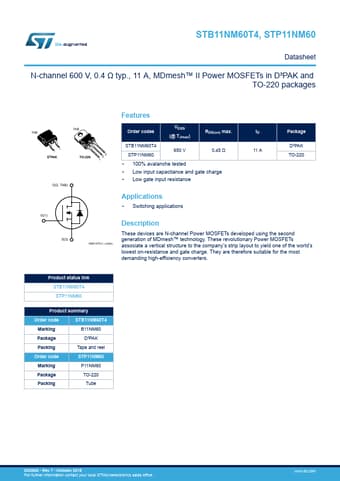

Preview of STP11NM60 PDF
datasheet Preview Page 2 datasheet Preview Page 3
