STP11N60DM2 N-CHANNEL POWER MOSFET

STP11N60DM2 Description

STP11N60DM2 N-channel 600 V, 0.370 Ω typ., 10 A MDmesh™ DM2 Power MOSFET in a TO-220 package Datasheet - production data Figure 1: Internal schemati.
This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode series.

STP11N60DM2 Features

* Order code STP11N60DM2 VDS @ TJmax. 650 V RDS(on) max. 0.420 Ω ID 10 A PTOT 110 W
* Fast-recovery body diode
* Extremely low gate charge and input capacitance
* Low on-resistance
* 100% avalanche tested
* Extremely high dv/dt ruggedness

📥 Download Datasheet

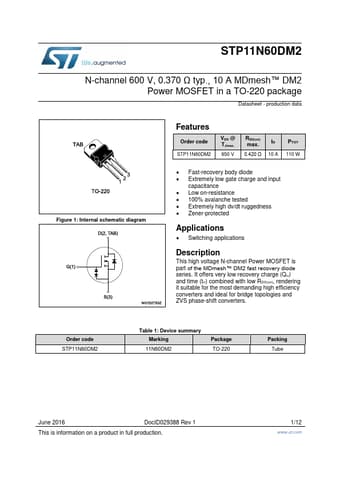

Preview of STP11N60DM2 PDF
