STP10NK70ZFP - N-CHANNEL Power MOSFET

This page provides the datasheet information for the STP10NK70ZFP, a member of the STP10NK70Z N-CHANNEL Power MOSFET family.

Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications.

Features

  • Type VDSS RDS(on) STP10NK70Z 700 V.

📥 Download Datasheet

Datasheet preview – STP10NK70ZFP

Datasheet Details

Part number STP10NK70ZFP
Manufacturer STMicroelectronics
File Size 325.65 KB
Description N-CHANNEL Power MOSFET
Datasheet download datasheet STP10NK70ZFP Datasheet
Additional preview pages of the STP10NK70ZFP datasheet.

📁 Similar Datasheet

  • STP10NK50Z - N-CHANNEL Zener-Protected SuperMESH MOSFET (STMicroelectronics)
  • STP10NK60ZFP - N-Channel MOSFET (INCHANGE)
  • STP10N03 - N-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STP10N105K5 - N-channel Power MOSFET (STMicroelectronics)
  • STP10N60M2 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STP10N62K3 - N-channel Power MOSFET (STMicroelectronics)
  • STP10N65K3 - N-channel Power MOSFET (STMicroelectronics)
  • STP10N95K5 - N-channel Power MOSFET (STMicroelectronics)
  • STP10NM50N - N-Channel Power MOSFET (STMicroelectronics)
  • STP10NM60N - N-Channel MOSFET (INCHANGE)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

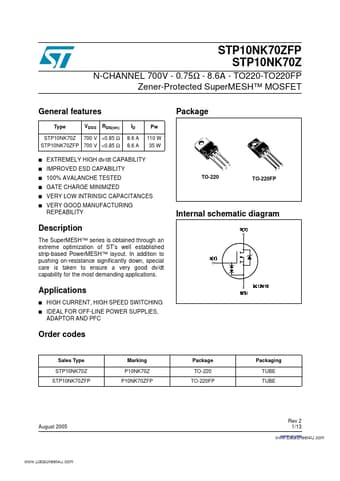

( DataSheet : www.DataSheet4U.com ) STP10NK70ZFP STP10NK70Z N-CHANNEL 700V - 0.75Ω - 8.6A - TO220-TO220FP Zener-Protected SuperMESH™ MOSFET General features Type VDSS RDS(on) STP10NK70Z 700 V <0.85 Ω STP10NK70ZFP 700 V <0.85 Ω ID 8.6 A 8.6 A Pw 110 W 35 W s EXTREMELY HIGH dv/dt CAPABILITY s IMPROVED ESD CAPABILITY s 100% AVALANCHE TESTED s GATE CHARGE MINIMIZED s VERY LOW INTRINSIC CAPACITANCES s VERY GOOD MANUFACTURING REPEABILITY Description The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications.
