STN4NE03 - N-CHANNEL POWER MOSFET

Description

This Power MOSFET is the latest development of STMicroelectronics unique ” Single Feature Size™ ” strip-based process.

📥 Download Datasheet

Datasheet preview – STN4NE03

Datasheet Details

Part number STN4NE03
Manufacturer STMicroelectronics
File Size 91.34 KB
Description N-CHANNEL POWER MOSFET
Datasheet download datasheet STN4NE03 Datasheet
Additional preview pages of the STN4NE03 datasheet.

📁 Similar Datasheet

  • STN4NF06L - Automotive-grade N-channel MOSFET (STMicroelectronics)
  • STN4NF20L - N-Channel Power MOSFET (STMicroelectronics)
  • STN4102 - MOSFET (Stanson Technology)
  • STN410D - MOSFET (Stanson Technology)
  • STN4110 - 40A N-Channel Enhancement Mode MOSFET (Stanson Technology)
  • STN4130 - N-Channel Enhancement Mode MOSFET (Stanson Technology)
  • STN4186D - MOSFET (Stanson Technology)
  • STN4260 - 18A N-Channel Enhancement Mode MOSFET (STANSON)
  • STN4346 - 6.8A N-Channel Enhancement Mode MOSFET (STANSON)
  • STN4392 - N-Channel Enhancement Mode MOSFET (STANSON)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

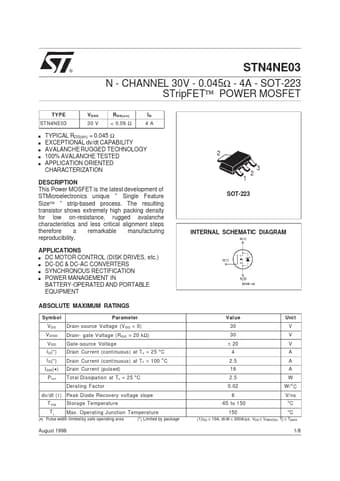

® STN4NE03 N - CHANNEL 30V - 0.045Ω - 4A - SOT-223 STripFET™ POWER MOSFET TYPE ST N4NE03 s s s s s V DSS 30 V R DS(on) < 0.06 Ω ID 4 A TYPICAL RDS(on) = 0.045 Ω EXCEPTIONAL dv/dt CAPABILITY AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED APPLICATION ORIENTED CHARACTERIZATION 2 3 DESCRIPTION This Power MOSFET is the latest development of STMicroelectronics unique ” Single Feature Size™ ” strip-based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility. APPLICATIONS DC MOTOR CONTROL (DISK DRIVES, etc.
