STM708S, STM706P, 3V Supervisor

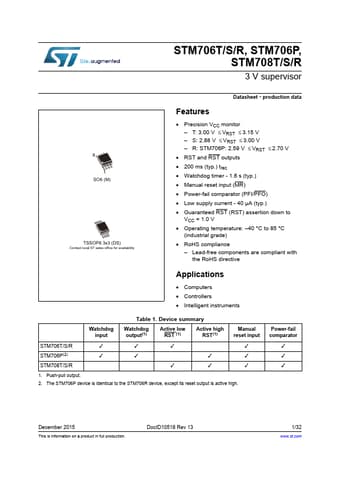

STM706T/S/R, STM706P, STM708T/S/R 3 V supervisor Datasheet - production data 620 76623['6 &RQWDFWORFDO67VDOHVRIILFHIRUDYDLODELO.

STM706P_STMicroelectronics.pdf

STM708S Datasheet Preview — This datasheet PDF includes multiple part numbers: STM708S, STM706P. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STM708S, STM706P

Manufacturer:

STMicroelectronics ↗

File Size:

960.34 KB

Description:

3V Supervisor

Note:

This datasheet PDF includes multiple part numbers: STM708S, STM706P.
Please refer to the document for exact specifications by model.

Features

* Precision VCC monitor
* T: 3.00 V ≤ VRST ≤ 3.15 V
* S: 2.88 V ≤ VRST ≤ 3.00 V
* R: STM706P: 2.59 V ≤ VRST ≤ 2.70 V
* RST and RST outputs
* 200 ms (typ. ) trec
* Watchdog timer - 1.6 s (typ. )
* Manual reset input (MR)
* Power-fa

Applications

* Computers
* Controllers
* Intelligent instruments Table 1. Device summary Watchdog input Watchdog output(1) Active low RST (1) Active high RST(1) Manual reset input STM706T/S/R ✓ ✓ ✓ ✓ STM706P(2) ✓ ✓ ✓ ✓ STM708T/S/R ✓ ✓ ✓ 1. Push-pull output. 2. The STM
