STLV3243EB - RS-232 Transceiver

Description

The STLV3243EB device consists of 3 drivers, 5 receivers and a dual charge-pump circuit.

All transmitter outputs and receiver inputs are protected up to ±8 kV USING IEC 1000-4-2 contact discharge and ±15 kV using the human body model.

Features

  • ESD protection for RS-232 I/O pins:.
  • ± 8 kV IEC 1000-4-2 contact discharge.
  • ± 15 kV human body model 1 mA supply current achieved when in autopower-down 250 kbps minimum guaranteed data rate Guaranteed 6 V/ms slew rate range Guaranteed mouse drive ability 0.1 µF external capacitors Meet EIA/TIA-562 specifications Available in Flip-Chip28 package Flip-Chip28.
  • auto-power-down enabled, the device is automatically activated when a v.

📥 Download Datasheet

Datasheet preview – STLV3243EB

Datasheet Details

Part number STLV3243EB
Manufacturer STMicroelectronics
File Size 290.68 KB
Description RS-232 Transceiver
Datasheet download datasheet STLV3243EB Datasheet
Additional preview pages of the STLV3243EB datasheet.

📁 Similar Datasheet

  • STL-S3 - Stratum 3 Timing Module (Connor-Winfield)
  • STL-S3E - Stratum 3E Timing Module (Connor-Winfield)
  • STL03S03F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL03S05F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL03S09F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL03S12F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL03S15F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL05S03F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL05S05F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL05S09F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
Other Datasheets by ST Microelectronics
  • STLV3243E - TRANSCEIVER
  • STLVD111 - PROGRAMMABLE LOW VOLTAGE 1:10 DIFFERENTIAL LVDS CLOCK DRIVER
  • STLVD112 - HIGH SPEED PROTECTION SWITCH
  • STLVD210 - DIFFERENTIAL LVDS CLOCK DRIVER
  • STLVDS050 - HIGH SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS
  • STLVDS051 - High speed differential line drivers/receivers
  • STLVDS104 - 4-PORT LVDS AND 4-PORT TTL-TO LVDS REPEATERS
  • STLVDS105 - 4-PORT LVDS AND 4-PORT TTL-TO LVDS REPEATERS

Full PDF Text Transcription

Click to expand full text

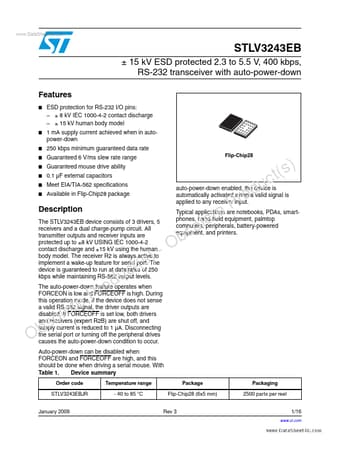

www.DataSheet4U.com STLV3243EB ± 15 kV ESD protected 2.3 to 5.5 V, 400 kbps, RS-232 transceiver with auto-power-down Features ■ ESD protection for RS-232 I/O pins: – ± 8 kV IEC 1000-4-2 contact discharge – ± 15 kV human body model 1 mA supply current achieved when in autopower-down 250 kbps minimum guaranteed data rate Guaranteed 6 V/ms slew rate range Guaranteed mouse drive ability 0.1 µF external capacitors Meet EIA/TIA-562 specifications Available in Flip-Chip28 package Flip-Chip28 ■ ■ ■ ■ ■ ■ ■ auto-power-down enabled, the device is automatically activated when a valid signal is applied to any receiver input. Typical applications are notebooks, PDAs, smartphones, hand-held equipment, palmtop computers, peripherals, battery-powered equipment, and printers.
