STGP12NB60KD, N-CHANNEL IGBT

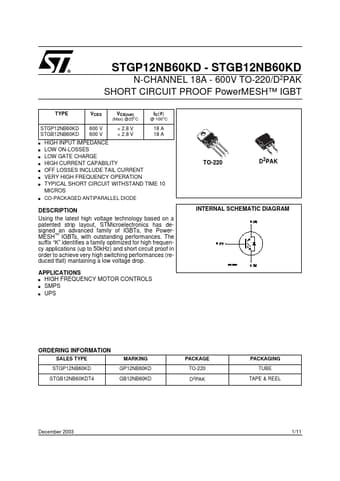

STGP12NB60KD - STGB12NB60KD N-CHANNEL 18A - 600V TO-220/D2PAK SHORT CIRCUIT PROOF PowerMESH™ IGBT TYPE STGP12NB60KD STGB12NB60KD s s s s s s s VCES 6.
Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™.

STGP12NB60KD_STMicroelectronics.pdf

STGP12NB60KD Datasheet Preview — Preview of STGP12NB60KD PDF

Datasheet Details

Part number:

STGP12NB60KD

Manufacturer:

STMicroelectronics ↗

File Size:

531.52 KB

Description:

N-CHANNEL IGBT

Applications

* (up to 50kHz) and short circuit proof in order to achieve very high switching performances (reduced tfall) mantaining a low voltage drop. APPLICATIONS s HIGH FREQUENCY MOTOR CONTROLS s SMPS s UPS INTERNAL SCHEMATIC DIAGRAM ORDERING INFORMATION SALES TYPE STGP12NB60KD STGB12NB60KDT4 MARKING GP12NB6
