STB6NA80 - N-CHANNEL Power MOSFET

STB6NA80 Description

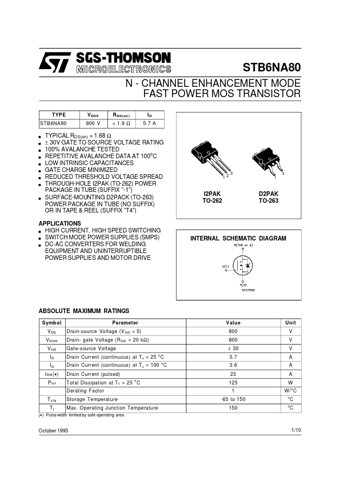

STB6NA80 N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR TYPE STB6NA80 n n n n n n n n V DSS 800 V R DS(on ) < 1.9 Ω ID 5.7 A n TYPICAL RD.

STB6NA80 Applications

* n HIGH CURRENT, HIGH SPEED SWITCHING n SWITCH MODE POWER SUPPLIES (SMPS) n DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symb ol V DS V DGR V GS ID ID I DM (
* ) P tot T s tg Tj Parameter Drain-
