STB6NA60 - N-CHANNEL Power MOSFET

STB6NA60 Description

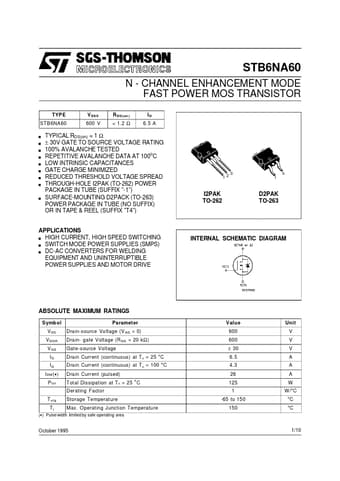

STB6NA60 N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR TYPE STB6NA60 n n n n n n n n V DSS 600 V R DS(on ) < 1.2 Ω ID 6.5 A n TYPICAL RD.

STB6NA60 Applications

* n HIGH CURRENT, HIGH SPEED SWITCHING n SWITCH MODE POWER SUPPLIES (SMPS) n DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symb ol V DS V DGR V GS ID ID I DM (
* ) P tot T s tg Tj Parameter Drain-
