M48Z18 - 64 Kbit (8 Kb x 8) ZEROPOWER SRAM

Product Overview

ST Microelectronics

📥 Download Datasheet

M48Z18 64 Kbit (8 Kb x 8) ZEROPOWER SRAM by ST Microelectronics - Datasheet Preview — Datasheet preview – M48Z18

Datasheet Details

Part number	M48Z18
Manufacturer	STMicroelectronics
File Size	300.37 KB
Description	64 Kbit (8 Kb x 8) ZEROPOWER SRAM
Datasheet	M48Z18 Datasheet

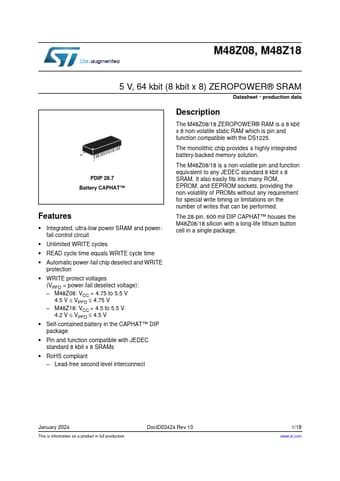

Additional preview pages of the M48Z18 datasheet.

Product details

Description

The M48Z08/18 ZEROPOWER® RAM is a 8 kbit x 8 non-volatile static RAM which is pin and function compatible with the DS1225.

Features

Integrated, ultra-low power SRAM and powerfail control circuit.
Unlimited WRITE cycles.
READ cycle time equals WRITE cycle time.
Automatic power-fail chip deselect and WRITE protection.
WRITE protect voltages (VPFD = power-fail deselect voltage):.
M48Z08: VCC = 4.75 to 5.5 V 4.5 V ≤ VPFD ≤ 4.75 V.
M48Z18: VCC = 4.5 to 5.5 V 4.2 V ≤ VPFD ≤ 4.5 V.
Self-contained battery in the CAPHAT™ DIP package.
Pin and function co.
