M48Z35Y, M48Z35 256-Kbit SRAM

M48Z35Y Description

M48Z35, M48Z35Y 256 Kbit (32 Kbit x 8) ZEROPOWER® SRAM Datasheet - production data 28 1 PDIP 28.7 Battery CAPHAT™ SNAPHAT® battery 28 1 SOH28 Featur.
The M48Z35/Y ZEROPOWER® RAM is a 32 K x 8, non-volatile static RAM that integrates powerfail deselect circuitry and battery control logic on a single.

M48Z35Y Features

* Integrated, ultra low power SRAM, power-fail control circuit, and battery
* READ cycle time equals WRITE cycle time
* Automatic power-fail chip deselect and WRITE protection
* WRITE protect voltages: (VPFD = power-fail deselect voltage)
* M48Z35: VCC = 4.75

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M48Z35Y, M48Z35. Please refer to the document for exact specifications by model.

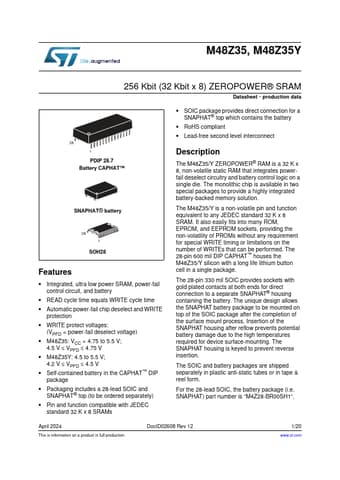

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M48Z35Y, M48Z35
Manufacturer
STMicroelectronics ↗
File Size
434.19 KB
Datasheet
M48Z35-STMicroelectronics.pdf
Description
256-Kbit SRAM
Note
This datasheet PDF includes multiple part numbers: M48Z35Y, M48Z35.
Please refer to the document for exact specifications by model.
