STN6475, STN6469 UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

STN6475 Description

Solid State Devices, Inc.14701 Firestone Blvd * La Mirada, Ca 90638 Phone: (562) 404-4474 * Fax: (562) 404-1773 ssdi@ssdi-power.com * www.

STN6475 Features

* 5.6 to 54 Volts Uni-Directional
* Bi-Directional Available
* Consult Factory
* Hermetic Glass Diode
* 175oC Maximum Operating Temperature
* TX, TXV, and Space Level Screening Available - Consult Factory2/
* Replacement for 1N6469
* 1

STN6475 Applications

* Voltage Sensitive Component Protection
* Protection Against Power Surges
* Lightning Protection MAXIMUM RATINGS Symbol Value Units Stand Off Voltage Steady State Power Dissipation VRRM VRSM VR PD 5.6
* 54.0 Volts 6.0 Watts Peak Pulse Power @ 1.0 msec Operat

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STN6475, STN6469. Please refer to the document for exact specifications by model.

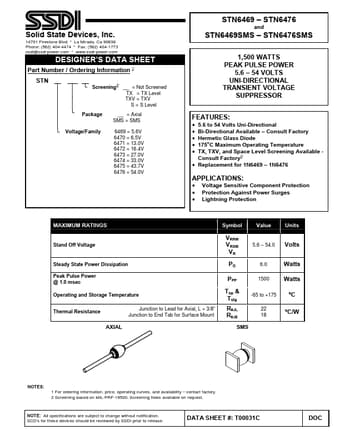

datasheet Preview Page 2

Datasheet Details

Part number
STN6475, STN6469
Manufacturer
SSDI
File Size
70.91 KB
Datasheet
STN6469-SSDI.pdf
Description
UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR
Note
This datasheet PDF includes multiple part numbers: STN6475, STN6469.
Please refer to the document for exact specifications by model.
