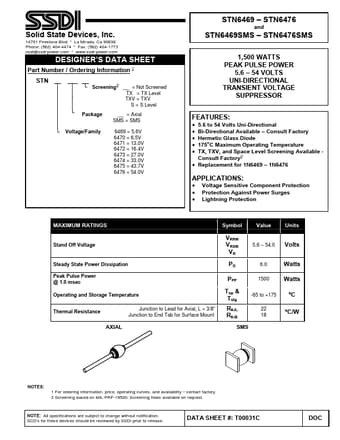

STN6471, STN6469, UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

Solid State Devices, Inc.14701 Firestone Blvd * La Mirada, Ca 90638 Phone: (562) 404-4474 * Fax: (562) 404-1773 ssdi@ssdi-power.com * www.

STN6469-SSDI.pdf

STN6471 Datasheet Preview — This datasheet PDF includes multiple part numbers: STN6471, STN6469. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STN6471, STN6469

Manufacturer:

SSDI

File Size:

70.91 KB

Description:

UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

Note:

This datasheet PDF includes multiple part numbers: STN6471, STN6469.
Please refer to the document for exact specifications by model.

Features

* 5.6 to 54 Volts Uni-Directional
* Bi-Directional Available
* Consult Factory
* Hermetic Glass Diode
* 175oC Maximum Operating Temperature
* TX, TXV, and Space Level Screening Available - Consult Factory2/
* Replacement for 1N6469
* 1

Applications

* Voltage Sensitive Component Protection
* Protection Against Power Surges
* Lightning Protection MAXIMUM RATINGS Symbol Value Units Stand Off Voltage Steady State Power Dissipation VRRM VRSM VR PD 5.6
* 54.0 Volts 6.0 Watts Peak Pulse Power @ 1.0 msec Operat
