SDAH2500UF - (SDAH2500UF - SDAH25000UF) RAFAST RECOVERY RECTIFIER ASSEMBLY

Download the SDAH2500UF datasheet PDF (SDAH10000UF included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (sdah2500uf - sdah25000uf) rafast recovery rectifier assembly.

Features

  • Average Output Current 1.1 to 2 Amps PIV from 2500 to 25000 V Ultrafast Recovery: 70 nsec Maximum Low Reverse Leakage Current Corona Free Construction Constructed with Hermetically Sealed Discretes Superior Thermal Shock Resistance TX and TXV Level Screening Available Fast and Hyper Fast Recovery Versions Available. Consult Factory. 1.30 Maximum Ratings Peak Repetitive Reverse and DC Blocking Voltage SDA.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SDAH10000UF_SSDI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SDAH2500UF
Manufacturer SSDI
File Size 56.92 KB
Description (SDAH2500UF - SDAH25000UF) RAFAST RECOVERY RECTIFIER ASSEMBLY
Datasheet download datasheet SDAH2500UF Datasheet

📁 Similar Datasheet

  • SDA-1000 - GaAs Distributed Amplifier (RF Micro Devices)
  • SDA-2000 - GaAs Distributed Amplifier (RF Micro Devices)
  • SDA-2083 - (SDA2043 / SDA2063 / SDA2083) 8-Bit Single-Chip Microcontrollers (Infineon Technologies)
  • SDA-3000 - GaAs Distributed Amplifier (RF Micro Devices)
  • SDA-4040D - Stealth Digital Analyzer (JDS Uniphase)
  • SDA-5000 - Stealth Digital Analyzer (JDS Uniphase)
  • SDA-801 - Single Digit Display (LedTech)
  • SDA004 - DATA BUS TRANSIENT SUPPRESSOR (Diodes Incorporated)
  • SDA006 - DATA BUS TRANSIENT SUPPRESSOR (Diodes Incorporated)
  • SDA01 - PNP Darlington General purpose (Sanken)
Other Datasheets by SSDI
  • SDAH2500 - (SDAH2500 - SDAH15000) STANDARD RECOVERY HIGH CURRENT - HIGH VOLTAGE RECTIFIER
  • SDAH25000UF - (SDAH2500UF - SDAH25000UF) RAFAST RECOVERY RECTIFIER ASSEMBLY
  • SDAH20000UF - (SDAH2500UF - SDAH25000UF) RAFAST RECOVERY RECTIFIER ASSEMBLY
  • SDAH10000 - (SDAH2500 - SDAH15000) STANDARD RECOVERY HIGH CURRENT - HIGH VOLTAGE RECTIFIER
  • SDAH10000UF - (SDAH2500UF - SDAH25000UF) RAFAST RECOVERY RECTIFIER ASSEMBLY
  • SDAH12500 - (SDAH2500 - SDAH15000) STANDARD RECOVERY HIGH CURRENT - HIGH VOLTAGE RECTIFIER
  • SDAH12500UF - (SDAH2500UF - SDAH25000UF) RAFAST RECOVERY RECTIFIER ASSEMBLY
  • SDAH15000 - (SDAH2500 - SDAH15000) STANDARD RECOVERY HIGH CURRENT - HIGH VOLTAGE RECTIFIER

Full PDF Text Transcription

Click to expand full text

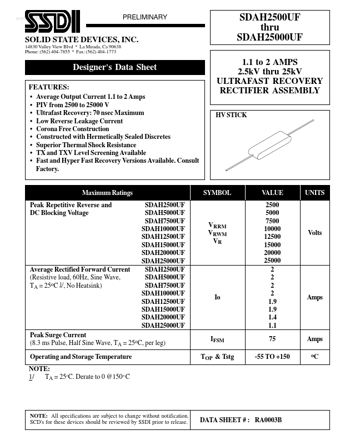

www.DataSheet4U.com PRELIMINARY SOLID STATE DEVICES, INC. 14830 Valley View Blvd * La Mirada, Ca 90638 Phone: (562) 404-7855 * Fax: (562) 404-1773 SDAH2500UF thru SDAH25000UF 1.1 to 2 AMPS 2.5kV thru 25kV ULTRAFAST RECOVERY RECTIFIER ASSEMBLY HV STICK Designer's Data Sheet FEATURES: • • • • • • • • • Average Output Current 1.1 to 2 Amps PIV from 2500 to 25000 V Ultrafast Recovery: 70 nsec Maximum Low Reverse Leakage Current Corona Free Construction Constructed with Hermetically Sealed Discretes Superior Thermal Shock Resistance TX and TXV Level Screening Available Fast and Hyper Fast Recovery Versions Available. Consult Factory. 1.
