SDAH15000UF, SDAH10000UF - (SDAH2500UF - SDAH25000UF) RAFAST RECOVERY RECTIFIER ASSEMBLY

Name: SDAH15000UF
SKU: SDAH15000UF-597300

SSDI

The SDAH15000UF by SSDI is a (SDAH2500UF - SDAH25000UF) RAFAST RECOVERY RECTIFIER ASSEMBLY. Below is the official datasheet preview.

Datasheet Details

Part number	SDAH15000UF, SDAH10000UF
Manufacturer	SSDI
File Size	56.92 KB
Description	(SDAH2500UF - SDAH25000UF) RAFAST RECOVERY RECTIFIER ASSEMBLY
Datasheet	SDAH10000UF_SSDI.pdf
Note	This datasheet PDF includes multiple part numbers: SDAH15000UF, SDAH10000UF. Please refer to the document for exact specifications by model.

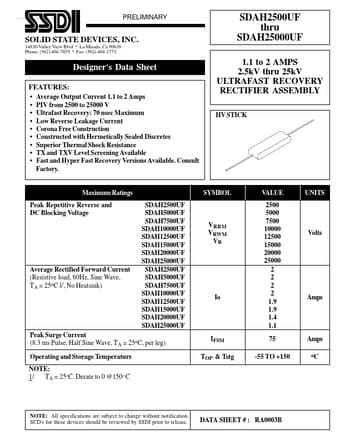

Additional preview pages of the SDAH15000UF datasheet.

Average Output Current 1.1 to 2 Amps PIV from 2500 to 25000 V Ultrafast Recovery: 70 nsec Maximum Low Reverse Leakage Current Corona Free Construction Constructed with Hermetically Sealed Discretes Superior Thermal Shock Resistance TX and TXV Level Screening Available Fast and Hyper Fast Recovery Versions Available. Consult Factory. 1.30 Maximum Ratings Peak Repetitive Reverse and DC Blocking Voltage SDA.
