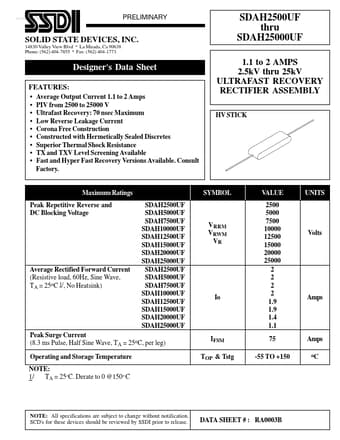

SDAH10000UF - (SDAH2500UF - SDAH25000UF) RAFAST RECOVERY RECTIFIER ASSEMBLY

Datasheet Details

Part number	SDAH10000UF
Manufacturer	SSDI
File Size	56.92 KB
Description	(SDAH2500UF - SDAH25000UF) RAFAST RECOVERY RECTIFIER ASSEMBLY
Datasheet	SDAH10000UF_SSDI.pdf

Average Output Current 1.1 to 2 Amps PIV from 2500 to 25000 V Ultrafast Recovery: 70 nsec Maximum Low Reverse Leakage Current Corona Free Construction Constructed with Hermetically Sealed Discretes Superior Thermal Shock Resistance TX and TXV Level Screening Available Fast and Hyper Fast Recovery Versions Available. Consult Factory. 1.30 Maximum Ratings Peak Repetitive Reverse and DC Blocking Voltage SDA.
