SDA403F, SDA403A - (SDA403A - SDA403G) 6 AMPS STANDARD RECOVERY THREE PHASE BRIDGE RECTIFIER ASSEMBLY

Name: SDA403F
SKU: SDA403F-597268

SSDI

The SDA403F by SSDI is a (SDA403A - SDA403G) 6 AMPS STANDARD RECOVERY THREE PHASE BRIDGE RECTIFIER ASSEMBLY. Below is the official datasheet preview.

📥 Download Datasheet

SDA403F (SDA403A - SDA403G) 6 AMPS STANDARD RECOVERY THREE PHASE BRIDGE RECTIFIER ASSEMBLY by SSDI - Datasheet Preview — Official preview page of the **SDA403F** (SDA403A - SDA403G) 6 AMPS STANDARD RECOVERY THREE PHASE BRIDGE RECTIFIER ASSEMBLY datasheet (SSDI).

Datasheet Details

Part number	SDA403F, SDA403A
Manufacturer	SSDI
File Size	51.12 KB
Description	(SDA403A - SDA403G) 6 AMPS STANDARD RECOVERY THREE PHASE BRIDGE RECTIFIER ASSEMBLY
Datasheet	SDA403A_SSDI.pdf
Note	This datasheet PDF includes multiple part numbers: SDA403F, SDA403A. Please refer to the document for exact specifications by model.

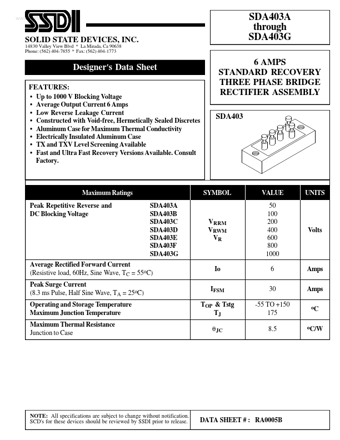

Additional preview pages of the SDA403F datasheet.

SDA403F Product details

Features

Up to 1000 V Blocking Voltage Average Output Current 6 Amps Low Reverse Leakage Current Constructed with Void-free, Hermetically Sealed Discretes Aluminum Case for Maximum Thermal Conductivity Electrically Insulated Aluminum Case TX and TXV Level Screening Available Fast and Ultra Fast Recovery Versions Available. Consult Factory. 1.30 Maximum Ratings Peak Repetitive Reverse and DC Blocking Voltage SDA403A SDA403B.
