SDA403B, SDA403A - (SDA403A - SDA403G) 6 AMPS STANDARD RECOVERY THREE PHASE BRIDGE RECTIFIER ASSEMBLY

Datasheet Details

Part number	SDA403B, SDA403A
Manufacturer	SSDI
File Size	51.12 KB
Description	(SDA403A - SDA403G) 6 AMPS STANDARD RECOVERY THREE PHASE BRIDGE RECTIFIER ASSEMBLY

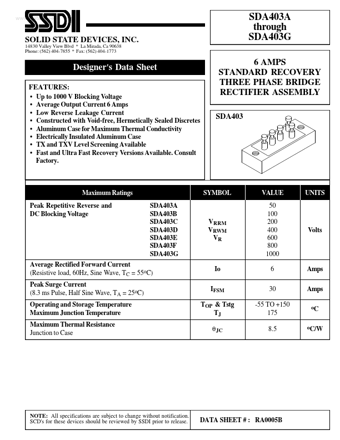

Datasheet	SDA403A_SSDI.pdf
Note	This datasheet PDF includes multiple part numbers: SDA403B, SDA403A. Please refer to the document for exact specifications by model.

Up to 1000 V Blocking Voltage Average Output Current 6 Amps Low Reverse Leakage Current Constructed with Void-free, Hermetically Sealed Discretes Aluminum Case for Maximum Thermal Conductivity Electrically Insulated Aluminum Case TX and TXV Level Screening Available Fast and Ultra Fast Recovery Versions Available. Consult Factory. 1.30 Maximum Ratings Peak Repetitive Reverse and DC Blocking Voltage SDA403A SDA403B.
