SC2151A Type-C PD and DPDM Fast Charge Controller

SC2151A Description

SOUTHCHIP SEMICONDUCTOR SC2151A DATASHEET DRAFT SOUTHCHIP CONFIDENTIAL, SUBJECT TO CHANGE SC2151A Type-C/ PD and DPDM Fast Charge Controller with CC.
SC2151A is a Type-C / PD and DPDM fast charge controller, with internal feedback compensation integrated.

SC2151A Features

* USB Type-C
* Support Type-C DFP protocols
* Configurable resistor RP
* USB Power Delivery
* Support DFP / UFP / DRP USB PD 3.0
* Hardware BMC transmitter and receiver
* Full feature physical layer
* Hardware CRC
* Hardware reset

SC2151A Applications

* SC2151A minimizes external components by integrating USB PD baseband PHY, Type-C detection, DPDM PHY, VBUS discharging paths, VCONN supply, programmable feedback compensation, voltage and current sense, 10-bit high performance ADC, dual 10-bit DACs, NMOS gate driver, I2C interface and protection c

📥 Download Datasheet

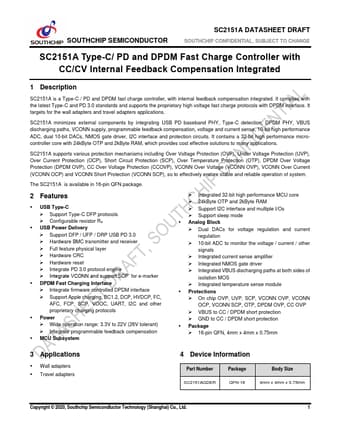

Preview of SC2151A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SC2151A
Manufacturer
SOUTHCHIP
File Size
591.57 KB
Datasheet
SC2151A-SOUTHCHIP.pdf
Description
Type-C PD and DPDM Fast Charge Controller
