SC2128C REMOTE FAN CONTROL IC

SC2128C Description

Silan Semiconductors REMOTE FAN CONTROL IC .
www.

SC2128C Features

* High performance CMOS Technology
* Low power consumption
* Optional independent light control
* 90 seconds cycle/6 seconds per step(off step 3 seconds) rhythm wind pattern
* Built-in remote control decoding circuitry with mask option custom code
* Available in 16,18,20,22,2

SC2128C Applications

* Optimized for fan application
* Suitable for heater fan, cooling fan, and other home appliances with remote control, timer and/or output level control PIN CONFIGURATION NC REMOTE VSS OSCI OSCO VDD OFF/BUZZ SPEED MODE 1 2 3 4 5 6 7 8 9 24 SO2 23 LO 22 MI 21 ST 20 LED1 SC2128C 19 LED2 18

📥 Download Datasheet

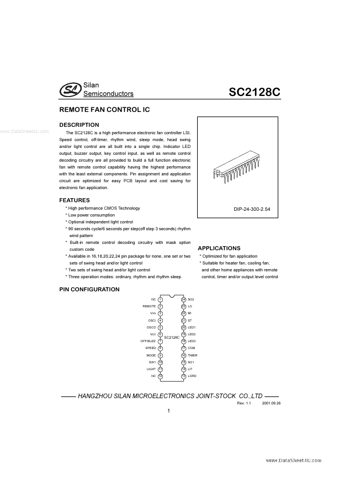

Preview of SC2128C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SC2128C
Manufacturer
SL
File Size
562.96 KB
Datasheet
SC2128C_SL.pdf
Description
REMOTE FAN CONTROL IC
