LPC47N267 - 100 Pin LPC Notebook I/O

LPC47N267 Description

LPC47N267 PRELIMINARY 100 Pin LPC Notebook I/O with X-Bus Interface .

LPC47N267 Features

* 3.3 Volt Operation (5V tolerant)
* Programmable Wakeup Event Interface (IO_PME# Pin)
* SMI Support (IO_SMI# Pin)
* GPIOs (29)
* Four IRQ Input Pins
* X-Bus Interface - Supports up to 4 external components - Supports I/O cycles (No Memory Support) - 8-Bit Data Transfer - 16

📥 Download Datasheet

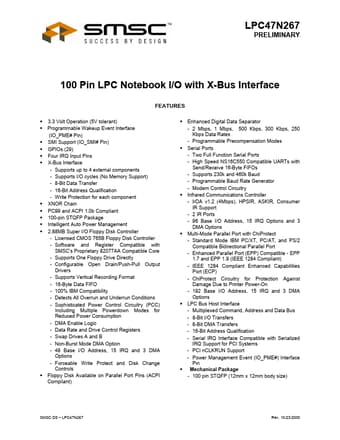

Preview of LPC47N267 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LPC47N267
Manufacturer
SMSC
File Size
1.23 MB
Datasheet
LPC47N267-SMSC.pdf
Description
100 Pin LPC Notebook I/O
