SF28G, SF21G - SUPER FAST RECTIFIER

SMC Diode

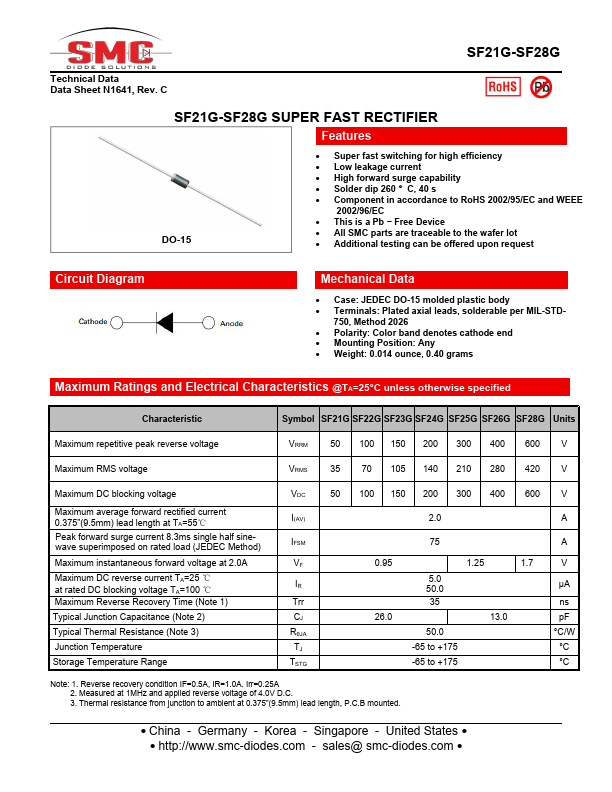

The SF28G by SMC Diode is a SUPER FAST RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

SF28G SUPER FAST RECTIFIER by SMC Diode - Datasheet Preview — Official preview page of the SF28G SUPER FAST RECTIFIER datasheet (SMC Diode).

Datasheet Details

Part number	SF28G, SF21G
Manufacturer	SMC Diode
File Size	342.01 KB
Description	SUPER FAST RECTIFIER
Datasheet	SF21G-SMCDiode.pdf
Note	This datasheet PDF includes multiple part numbers: SF28G, SF21G. Please refer to the document for exact specifications by model.

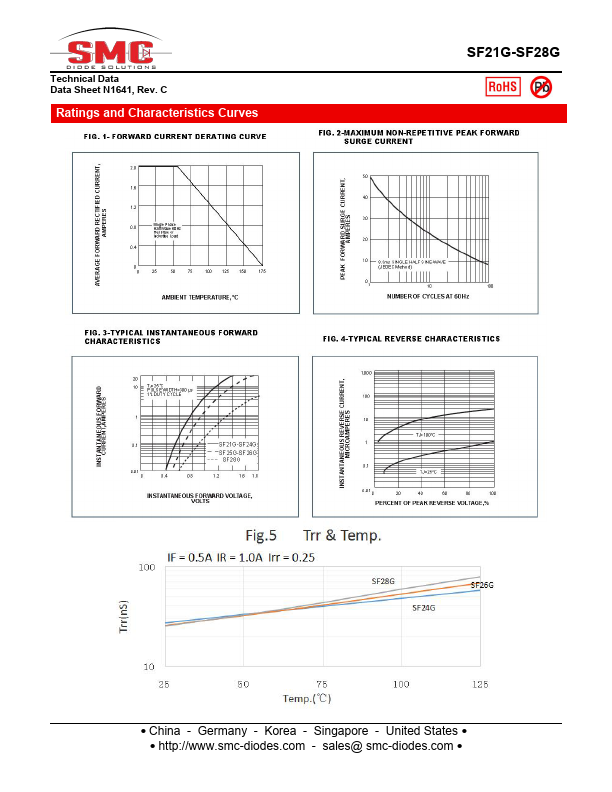

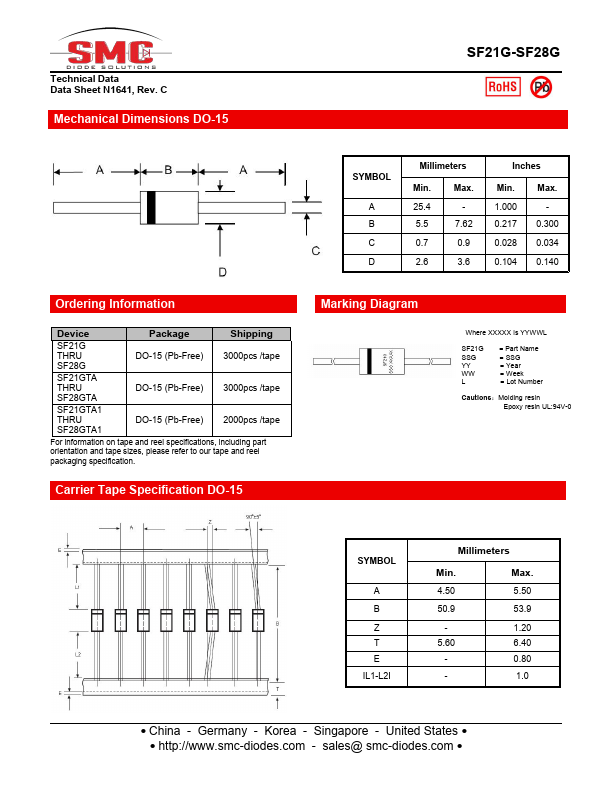

Additional preview pages of the SF28G datasheet.

SF28G Product details

Features

DO-15.
Super fast switching for high efficiency.
Low leakage current.
High forward surge capability.
Solder dip 260 °C, 40 s.
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: JEDEC DO-15 molded plastic body.
Terminals: Plated axial leads, solderable per MIL-STD-.
