SF23G, SF21G - SUPER FAST RECTIFIER

SMC Diode

📥 Download Datasheet

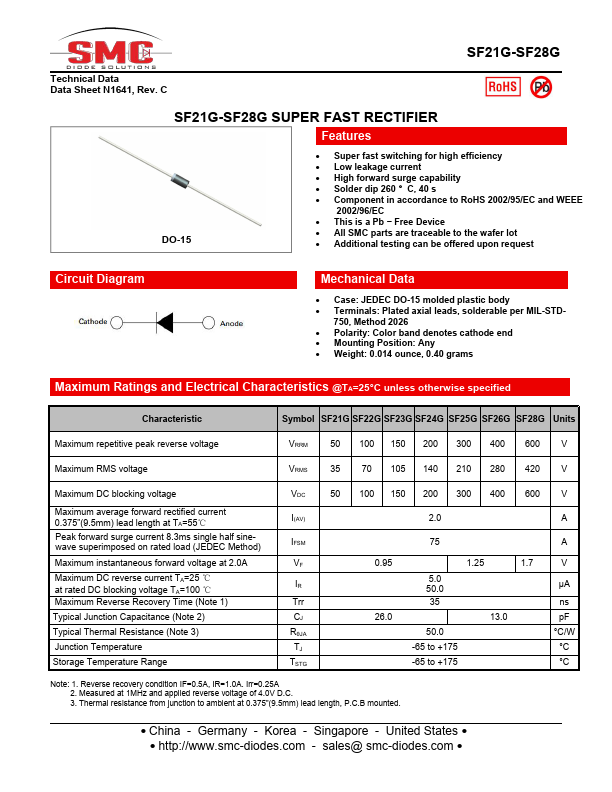

SF23G Datasheet Preview — This datasheet PDF includes multiple part numbers: SF23G, SF21G. Please refer to the document for exact specifications by model.

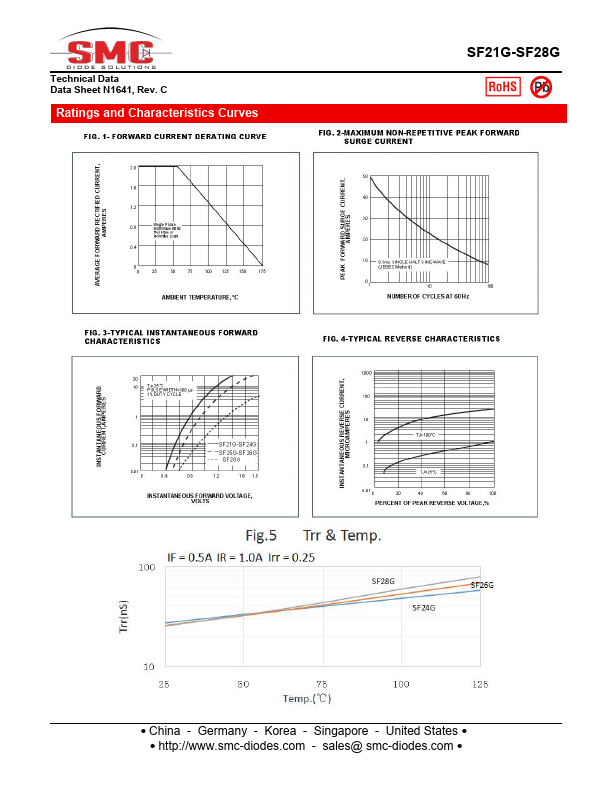

datasheet Preview Page 2

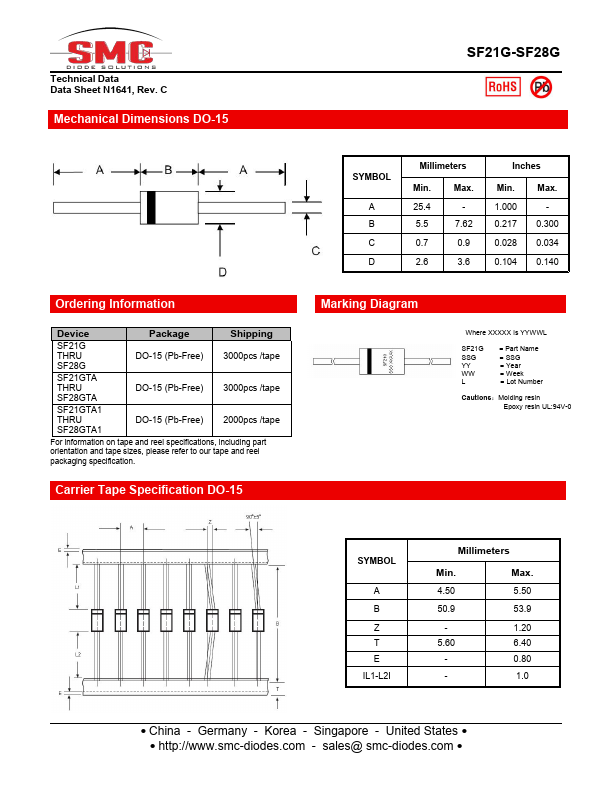

datasheet Preview Page 3

Datasheet Details

Part number	SF23G, SF21G
Manufacturer	SMC Diode
File Size	342.01 KB
Description	SUPER FAST RECTIFIER
Datasheet	SF21G-SMCDiode.pdf
Note	This datasheet PDF includes multiple part numbers: SF23G, SF21G. Please refer to the document for exact specifications by model.

SF23G Product details

Features

DO-15.
Super fast switching for high efficiency.
Low leakage current.
High forward surge capability.
Solder dip 260 °C, 40 s.
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: JEDEC DO-15 molded plastic body.
Terminals: Plated axial leads, solderable per MIL-STD-.
