SB2100 - SCHOTTKY RECTIFIER

SB2100 Description

SB2100 Technical Data Data Sheet N0154, Rev.B SB2100 SCHOTTKY RECTIFIER .

SB2100 Features

* DO-15
* Schottky Barrier Chip
* Ideally Suited for Automatic Assembly
* Low Power Loss, High Efficiency
* Surge Overload Rating to 50A Peak

SB2100 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Disk drives Maximum Ratings Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Repetiti

📥 Download Datasheet

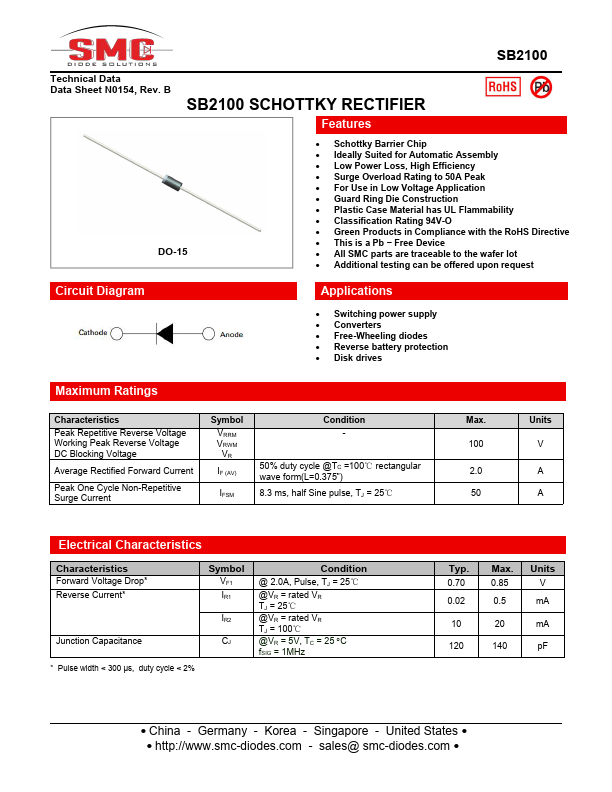

Preview of SB2100 PDF

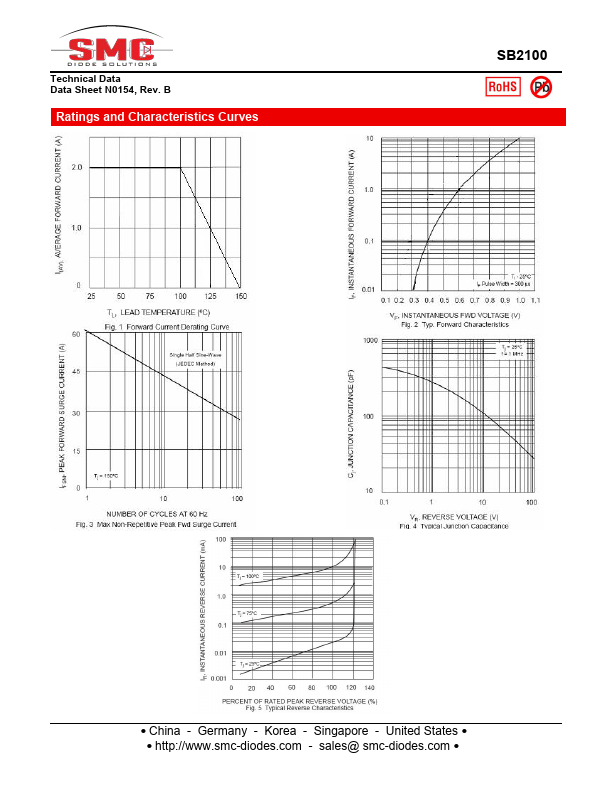

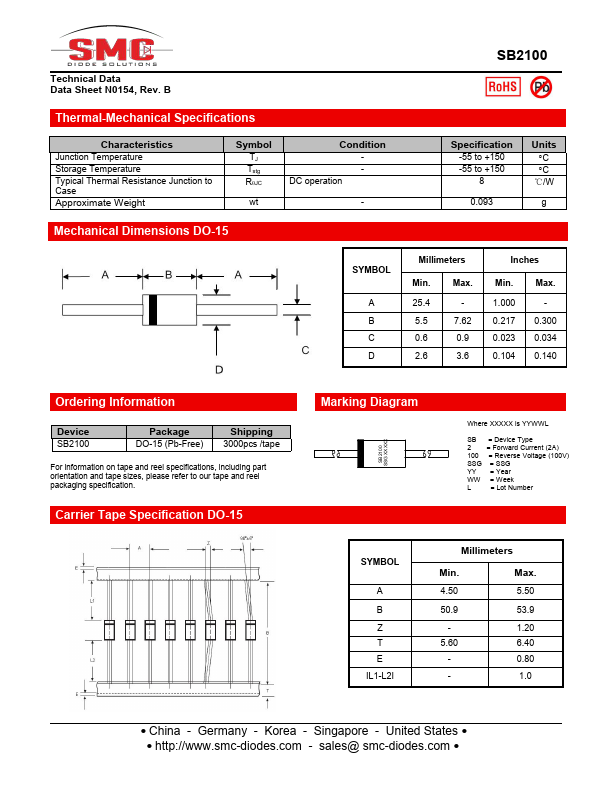

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB2100
Manufacturer
SMC Diode
File Size
304.00 KB
Datasheet
SB2100-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
