SB1200 - SCHOTTKY RECTIFIER

SB1200 Description

SB1200 Technical Data Data Sheet N0874, Rev.A SB1200 SCHOTTKY RECTIFIER .

SB1200 Features

* DO-41
* Schottky Barrier Chip
* Guard Ring Die Construction for Transient Protection
* High Current Capability
* Low Power Loss, High Efficiency
* High Surge Current Capability
* For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Applic

SB1200 Applications

* This is a Pb
* Free Device
* All SMC parts are traceable to the wafer lot
* Additional testing can be offered upon request Circuit Diagram Applications
* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Disk drives

📥 Download Datasheet

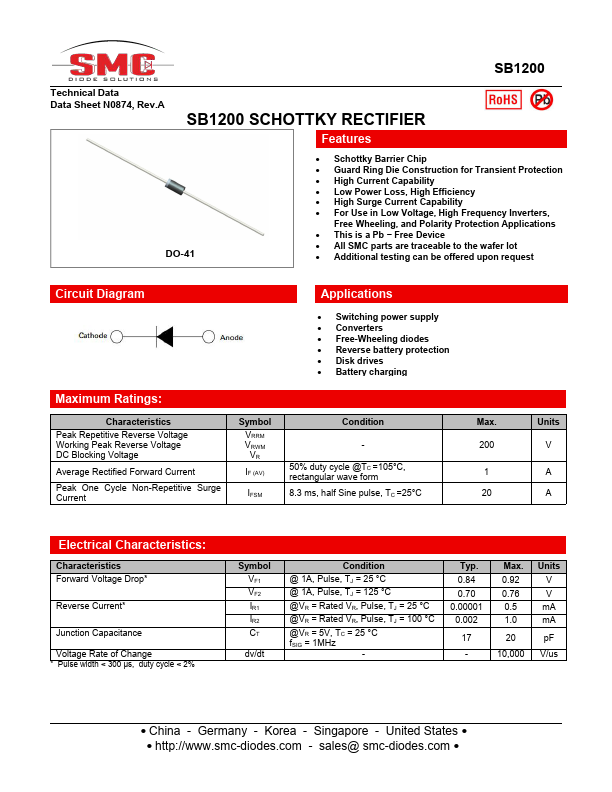

Preview of SB1200 PDF

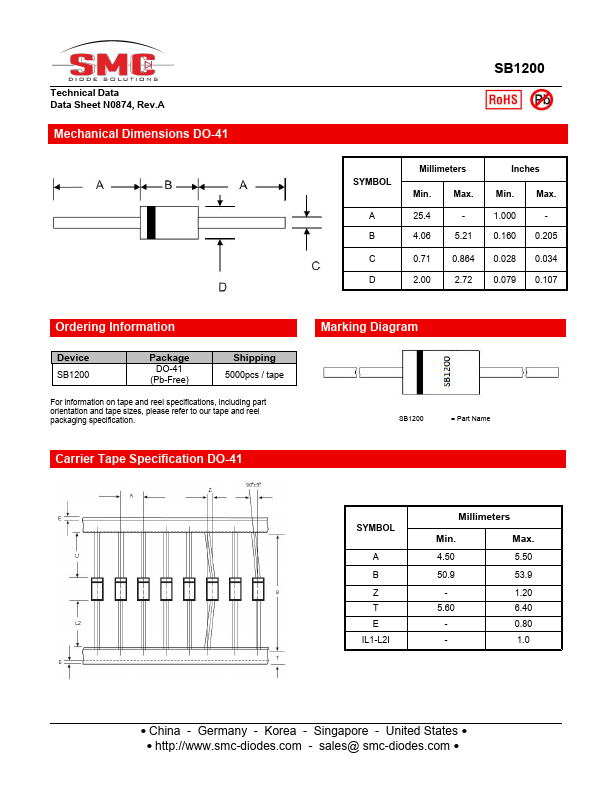

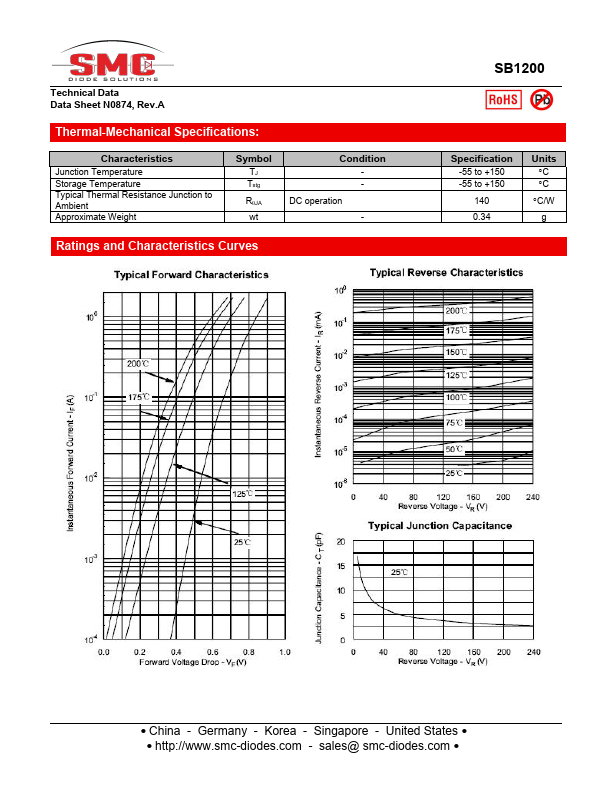

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB1200
Manufacturer
SMC Diode
File Size
247.57 KB
Datasheet
SB1200-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
