MBR60200WT - SCHOTTKY RECTIFIER

Name: MBR60200WT
SKU: MBR60200WT-1587285

SMC Diode

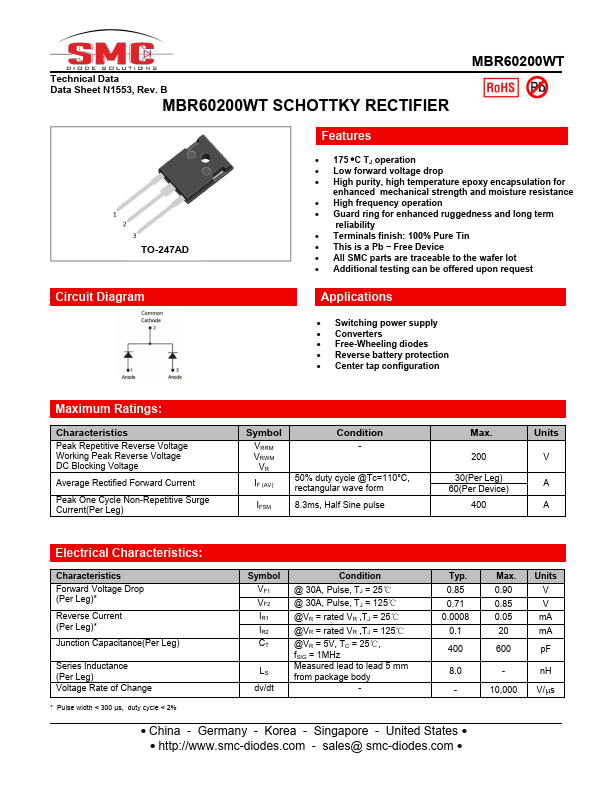

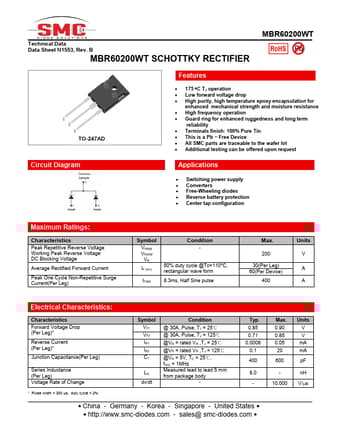

The MBR60200WT by SMC Diode is a SCHOTTKY RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	MBR60200WT
Manufacturer	SMC Diode
File Size	289.97 KB
Description	SCHOTTKY RECTIFIER
Datasheet	MBR60200WT-SMCDiode.pdf

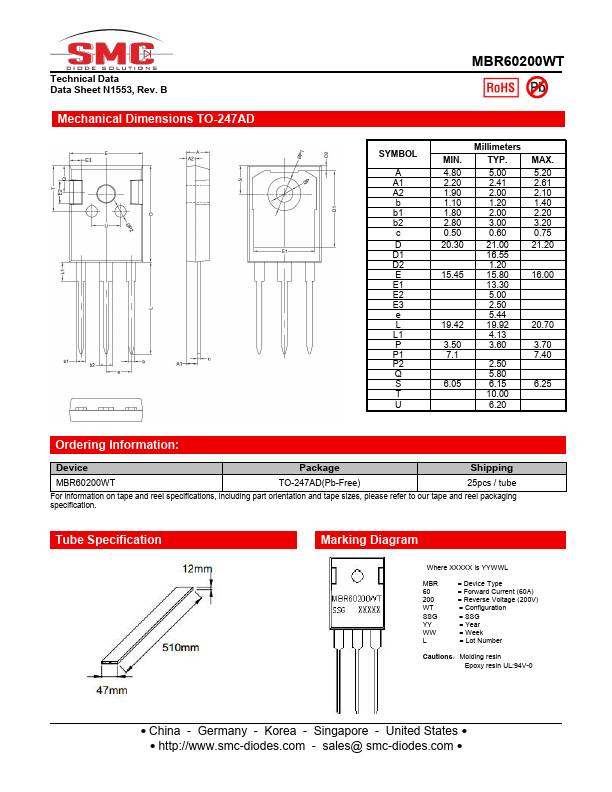

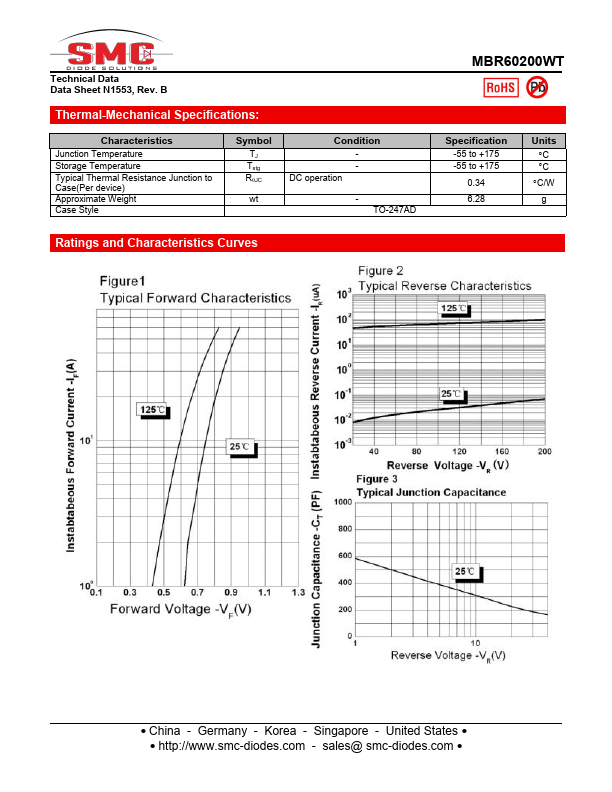

Additional preview pages of the MBR60200WT datasheet.

175 C TJ operation.
Low forward voltage drop.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
High frequency operation.
Guard ring for enhanced ruggedness and long term reliability.
Terminals finish: 100% Pure Tin.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram.
