MBR6020 - Silicon Power Schottky Diode

Name: MBR6020
SKU: MBR6020-1125490

GeneSiC

The MBR6020 by GeneSiC is a Silicon Power Schottky Diode. Below is the official datasheet preview.

Datasheet Details

Part number	MBR6020
Manufacturer	GeneSiC
File Size	723.39 KB
Description	Silicon Power Schottky Diode
Datasheet	MBR6020-GeneSiC.pdf

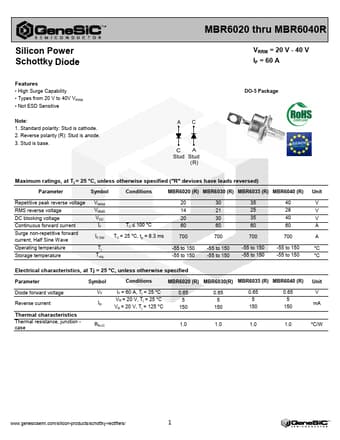

Additional preview pages of the MBR6020 datasheet.

High Surge Capability.
Types from 20 V to 40V VRRM.
Not ESD Sensitive Note: 1. Standard polarity: Stud is cathode. 2. Reverse polarity (R): Stud is anode. 3. Stud is base. MBR6020 thru MBR6040R VRRM = 20 V - 40 V IF = 60 A DO-5 Package Maximum ratings, at Tj = 25 °C, unless otherwise specified ("R" devices have leads reversed) Parameter Symbol Conditions MBR6020 (R) MBR6030 (R) MBR6035 (R) MBR6040 (R) Repetitive peak reverse voltage RMS reverse voltage DC block.
