50WQ03FN - SCHOTTKY RECTIFIER

Product Overview

SMC Diode

📥 Download Datasheet

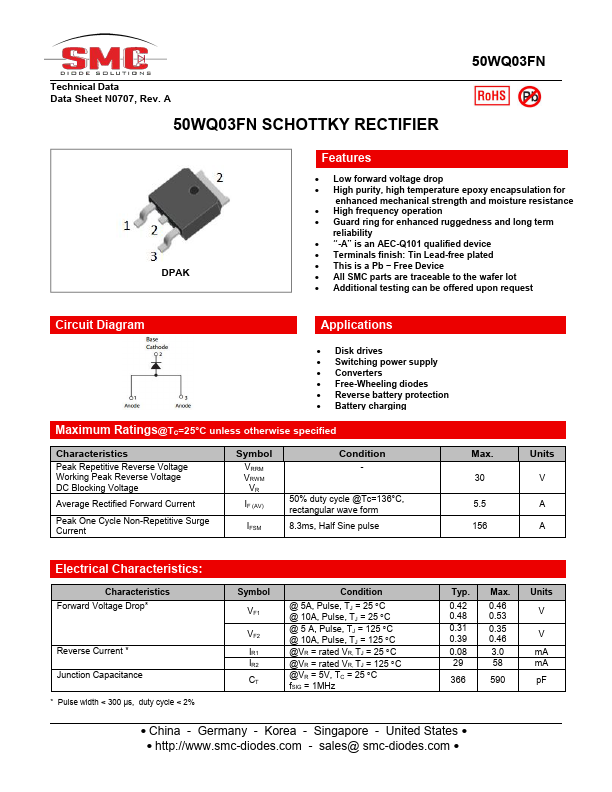

50WQ03FN SCHOTTKY RECTIFIER by SMC Diode - Datasheet Preview — Datasheet preview – 50WQ03FN

Datasheet Details

Part number	50WQ03FN
Manufacturer	SMC Diode
File Size	323.03 KB
Description	SCHOTTKY RECTIFIER
Datasheet	50WQ03FN Datasheet

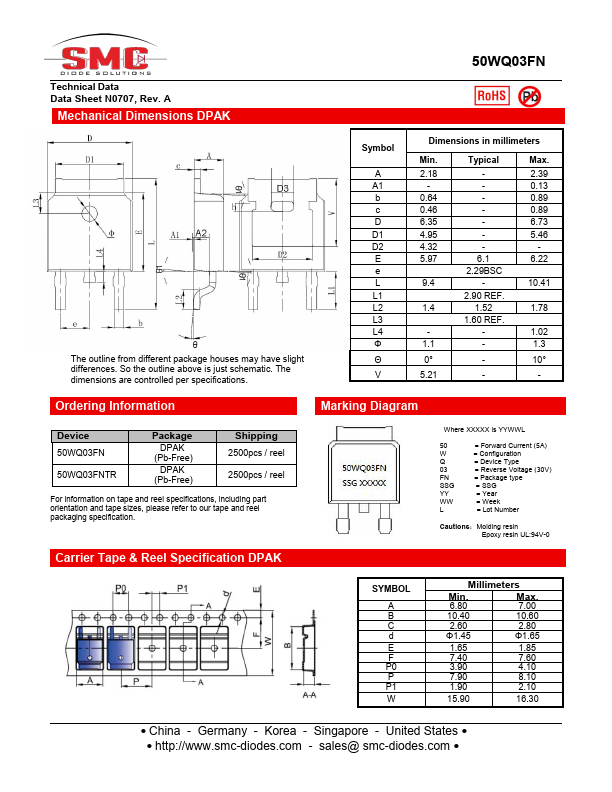

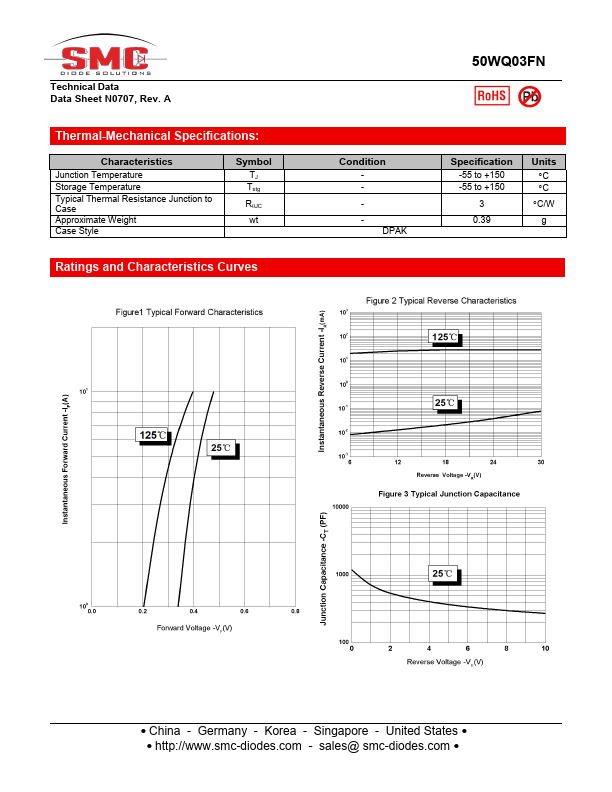

Additional preview pages of the 50WQ03FN datasheet.

Product details

Features

Low forward voltage drop.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
High frequency operation.
Guard ring for enhanced ruggedness and long term reliability.
“-A” is an AEC-Q101 qualified device.
Terminals finish: Tin Lead-free plated.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Applica.
