50WQ20FN SCHOTTKY RECTIFIER

SMC Diode

50WQ20FN Description

Technical Data Data Sheet N0711, Rev.A 50WQ20FN SCHOTTKY RECTIFIER 50WQ20FN DPAK .

50WQ20FN Features

* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* This is a Pb
* Free Device
* All SMC par

50WQ20FN Applications

* Disk drives
* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Battery charging Symbol VRRM VRWM VR IF (AV) IFSM Condition - 50% duty cycle @Tc=136°C, rectangular wave form 8.3ms, Half Sine pulse, TC = 25 C Max. 200 5.0 132 Unit

📥 Download Datasheet

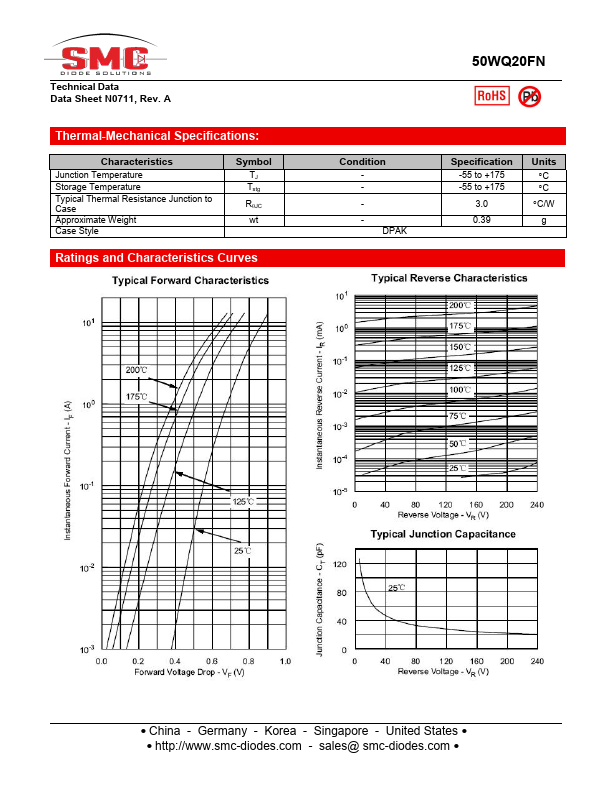

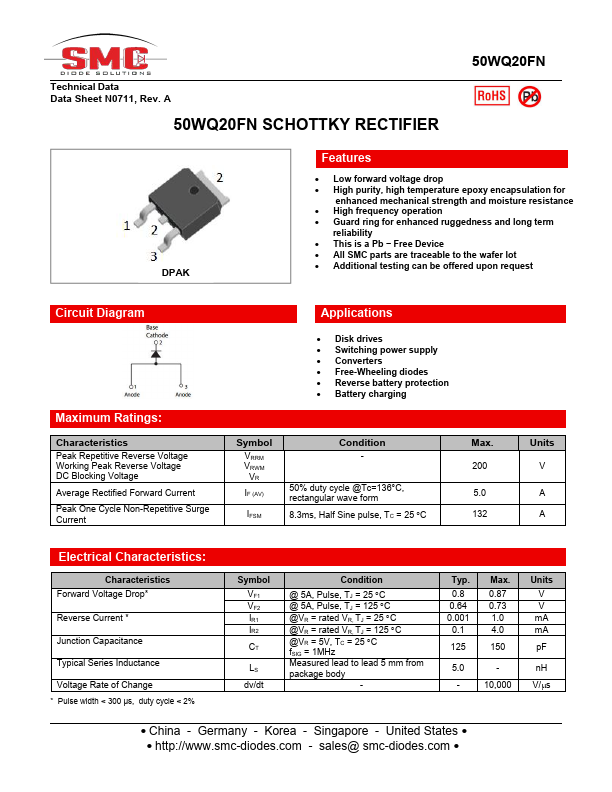

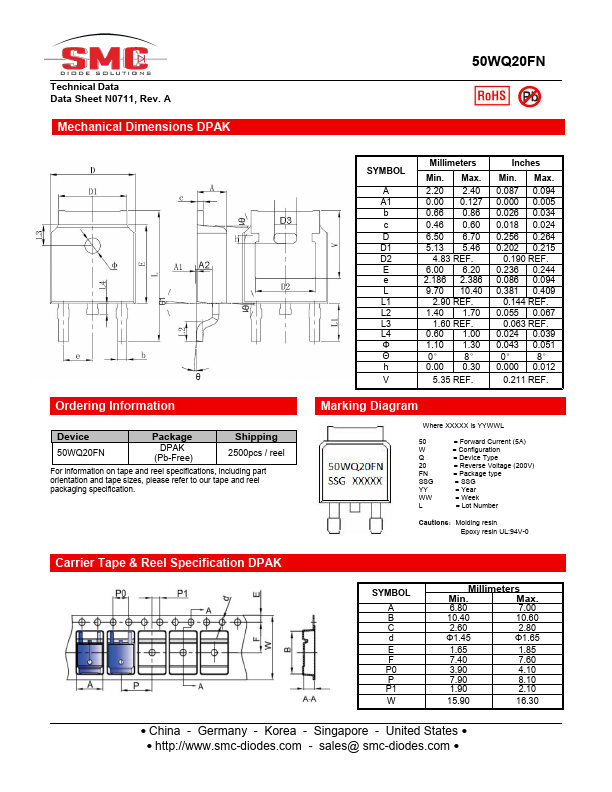

50WQ20FN Datasheet Preview — Preview of 50WQ20FN PDF

Datasheet Details

Part number: 50WQ20FN
Manufacturer: SMC Diode
File Size: 316.76 KB
Datasheet: 50WQ20FN-SMCDiode.pdf
Description: SCHOTTKY RECTIFIER
