1SMA4741 - SURFACE MOUNT ZENER DIODE

SMC Diode

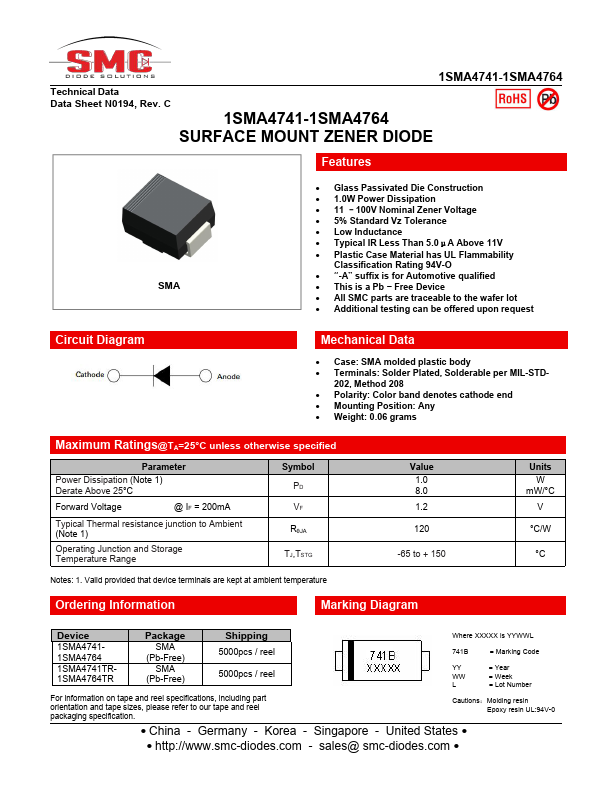

The 1SMA4741 by SMC Diode is a SURFACE MOUNT ZENER DIODE. Below is the official datasheet preview.

📥 Download Datasheet

1SMA4741 SURFACE MOUNT ZENER DIODE by SMC Diode - Datasheet Preview — Official preview page of the 1SMA4741 SURFACE MOUNT ZENER DIODE datasheet (SMC Diode).

Datasheet Details

Part number	1SMA4741
Manufacturer	SMC Diode
File Size	323.32 KB
Description	SURFACE MOUNT ZENER DIODE
Datasheet	1SMA4741-SMCDiode.pdf

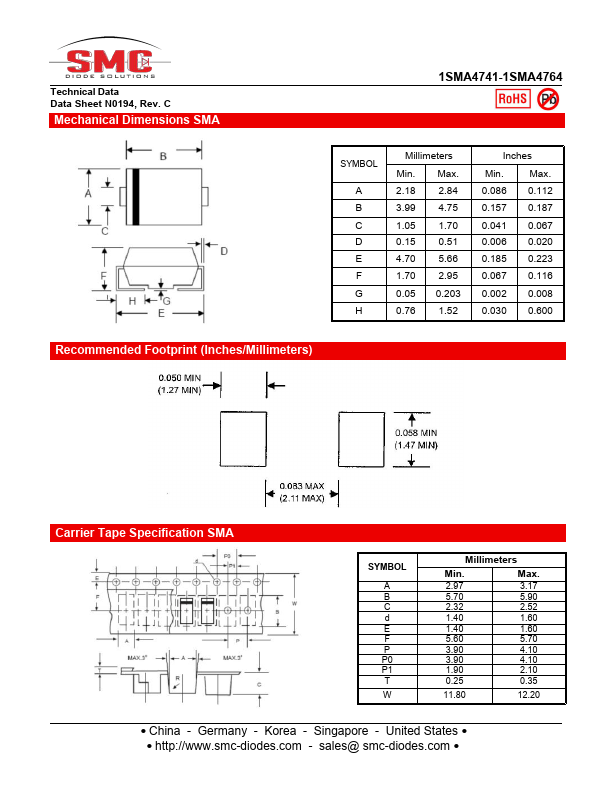

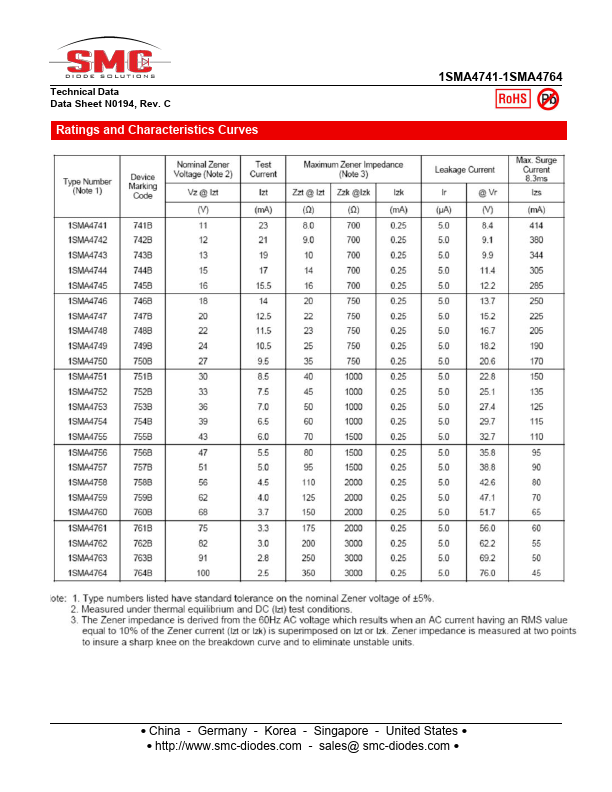

Additional preview pages of the 1SMA4741 datasheet.

1SMA4741 Product details

Features

SMA.
Glass Passivated Die Construction.
1.0W Power Dissipation.
11.
100V Nominal Zener Voltage.
5% Standard Vz Tolerance.
Low Inductance.
Typical IR Less Than 5.0μA Above 11V.
Plastic Case Material has UL Flammability Classification Rating 94V-O.
“-A” suffix is for Automotive qualified.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram.
