1SMA4745, 1SMA4741 - SURFACE MOUNT ZENER DIODE

SMC Diode

📥 Download Datasheet

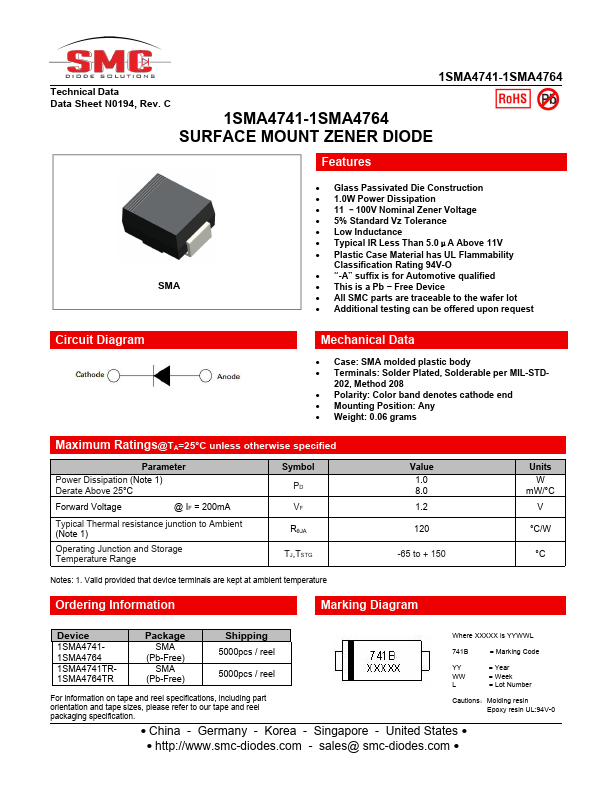

1SMA4745 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1SMA4745, 1SMA4741. Please refer to the document for exact specifications by model.

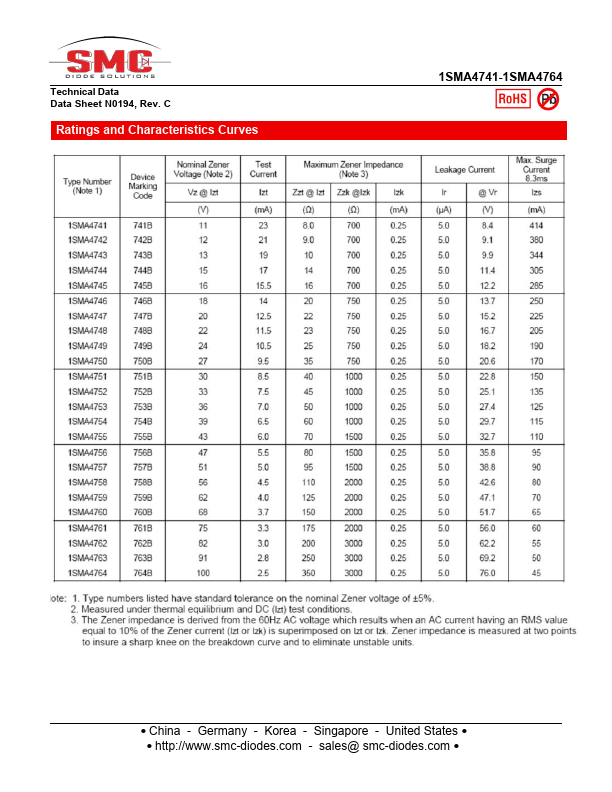

datasheet Preview Page 2

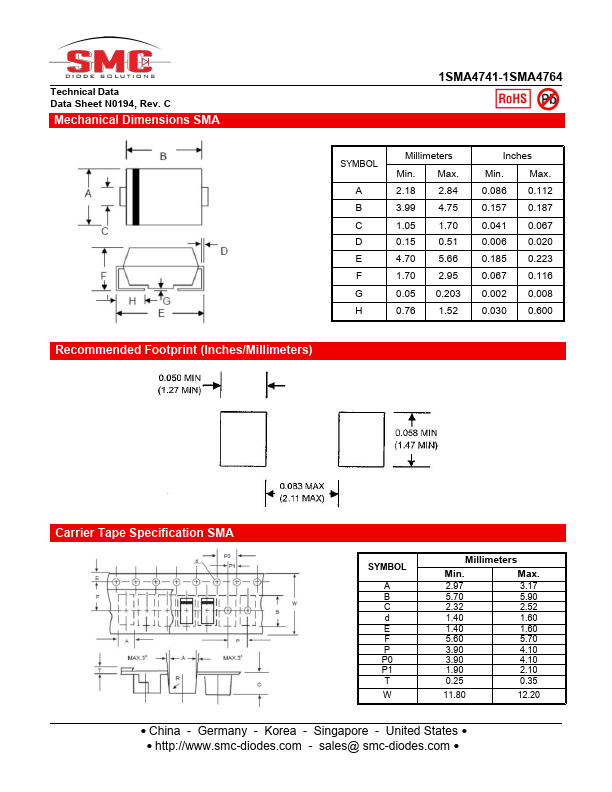

datasheet Preview Page 3

Datasheet Details

Part number	1SMA4745, 1SMA4741
Manufacturer	SMC Diode
File Size	323.32 KB
Description	SURFACE MOUNT ZENER DIODE
Datasheet	1SMA4741-SMCDiode.pdf
Note	This datasheet PDF includes multiple part numbers: 1SMA4745, 1SMA4741. Please refer to the document for exact specifications by model.

1SMA4745 Product details

Features

SMA.
Glass Passivated Die Construction.
1.0W Power Dissipation.
11.
100V Nominal Zener Voltage.
5% Standard Vz Tolerance.
Low Inductance.
Typical IR Less Than 5.0μA Above 11V.
Plastic Case Material has UL Flammability Classification Rating 94V-O.
“-A” suffix is for Automotive qualified.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram.
