15SQ100, 15SQ030 - SCHOTTKY BARRIER RECTIFIER

SMC Diode

The 15SQ100 by SMC Diode is a SCHOTTKY BARRIER RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

15SQ100 SCHOTTKY BARRIER RECTIFIER by SMC Diode - Datasheet Preview — Official preview page of the 15SQ100 SCHOTTKY BARRIER RECTIFIER datasheet (SMC Diode).

Datasheet Details

Part number	15SQ100, 15SQ030
Manufacturer	SMC Diode
File Size	1.03 MB
Description	SCHOTTKY BARRIER RECTIFIER
Datasheet	15SQ030-SMCDiode.pdf
Note	This datasheet PDF includes multiple part numbers: 15SQ100, 15SQ030. Please refer to the document for exact specifications by model.

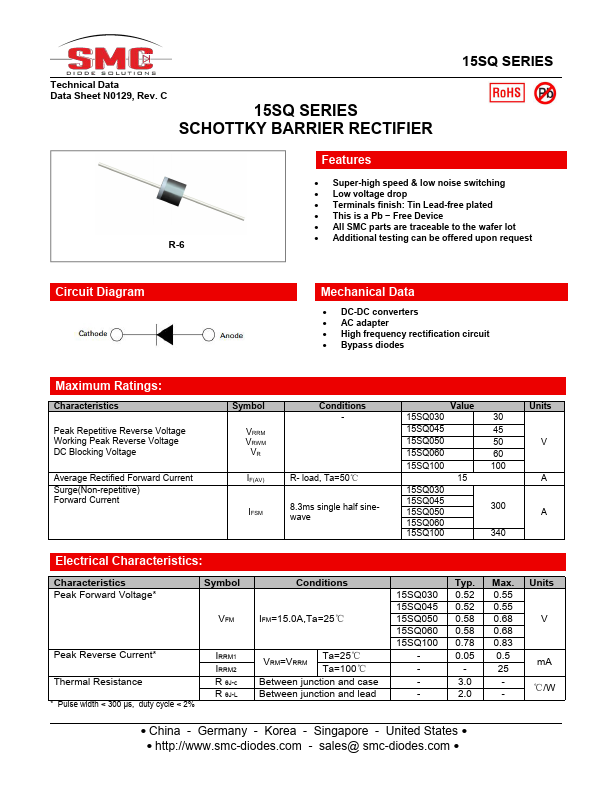

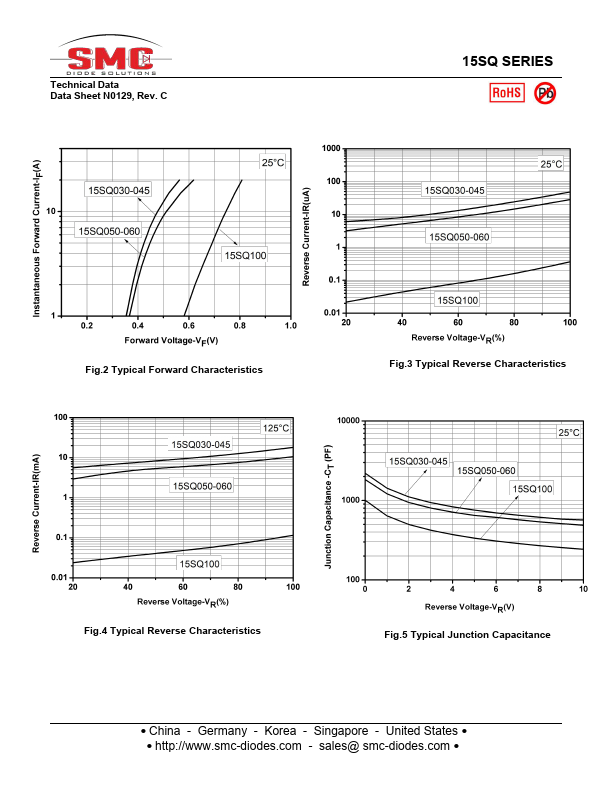

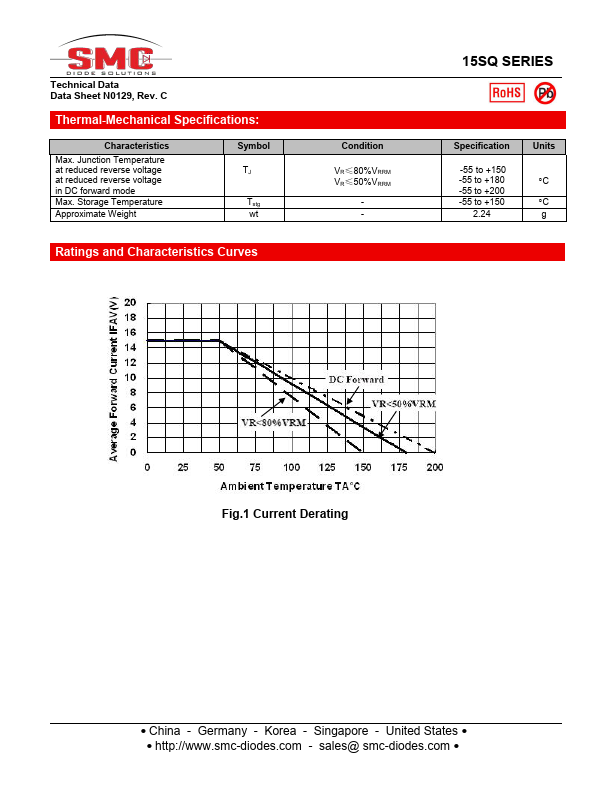

Additional preview pages of the 15SQ100 datasheet.

15SQ100 Product details

Features

Super-high speed & low noise switching.
Low voltage drop.
Terminals finish: Tin Lead-free plated.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot R-6.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
DC-DC converters.
AC adapter.
High frequency rectification circuit.
Bypass diodes Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage.
