15SQ035 - SCHOTTKY BARRIER RECTIFIERS

Download the 15SQ035 datasheet PDF (15SQ030 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for schottky barrier rectifiers.

Features

  • Metal of silicon rectifier , majority carrier conduction.
  • Guard ring for transient protection.
  • Low power loss,high efficiency.
  • High current capability,low VF.
  • High surge capacity.
  • For use in low voltage,high frequency inverters,free wheeling,and polarity protection.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (15SQ030-CUMSUMI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 15SQ035
Manufacturer CUMSUMI
File Size 176.70 KB
Description SCHOTTKY BARRIER RECTIFIERS
Datasheet download datasheet 15SQ035 Datasheet

📁 Similar Datasheet

  • 15SQ035 - Schottky Barrier Rectifiers (DC COMPONENTS)
  • 15SQ035 - 15A Schottky Barrier Rectifiers (SD-ELEC)
  • 15SQ035 - Schottky Barrier Rectifiers (Luguang Electronic)
  • 15SQ035 - Schottky Barrier Rectifiers (HY ELECTRONIC)
  • 15SQ035 - Schottky Barrier Rectifier (Naina Semiconductor)
  • 15SQ035 - 15.0Amp Schottky Barrier Rectifiers (ZRE)
  • 15SQ030 - SCHOTTKY BARRIER RECTIFIER (Sangdest Microelectronics)
  • 15SQ030 - Schottky Barrier Rectifiers (DC COMPONENTS)
  • 15SQ030 - 15A Schottky Barrier Rectifiers (SD-ELEC)
  • 15SQ030 - Schottky Barrier Rectifiers (Luguang Electronic)
Other Datasheets by CUMSUMI
  • 15SQ030 - SCHOTTKY BARRIER RECTIFIERS
  • 15SQ040 - SCHOTTKY BARRIER RECTIFIERS
  • 15SQ045 - SCHOTTKY BARRIER RECTIFIERS
  • 15SQ050 - SCHOTTKY BARRIER RECTIFIERS
  • 15SQ060 - SCHOTTKY BARRIER RECTIFIERS
  • 15SQ080 - SCHOTTKY BARRIER RECTIFIERS
  • 15SQ100 - SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription

Click to expand full text

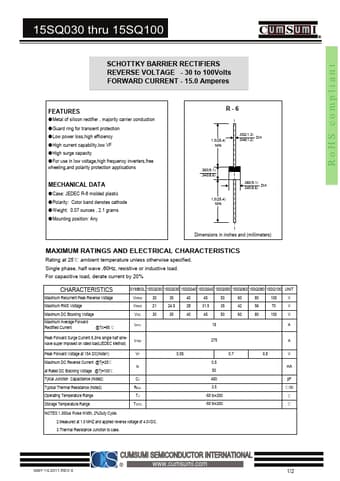

RoHS compliant 15SQ030 thru 15SQ100 SCHOTTKY BARRIER RECTIFIERS REVERSE VOLTAGE - 30 to 100Volts FORWARD CURRENT - 15.0 Amperes FEATURES ●Metal of silicon rectifier , majority carrier conduction ●Guard ring for transient protection ●Low power loss,high efficiency ●High current capability,low VF ●High surge capacity ●For use in low voltage,high frequency inverters,free wheeling,and polarity protection applications MECHANICAL DATA ●Case: JEDEC R-6 molded plastic ●Polarity: Color band denotes cathode ●Weight: 0.07 ounces , 2.1 grams ●Mounting position: Any R-6 1.0(25.4) MIN .052(1.3) .048(1.2) DIA .360(9.1) .340(8.6) 2100 .360(9.1) .340(8.6) DIA 1.0(25.
