15SQ030 - SCHOTTKY BARRIER RECTIFIER

SMC Diode

The 15SQ030 by SMC Diode is a SCHOTTKY BARRIER RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

15SQ030 SCHOTTKY BARRIER RECTIFIER by SMC Diode - Datasheet Preview — Official preview page of the 15SQ030 SCHOTTKY BARRIER RECTIFIER datasheet (SMC Diode).

Datasheet Details

Part number	15SQ030
Manufacturer	SMC Diode
File Size	1.03 MB
Description	SCHOTTKY BARRIER RECTIFIER
Datasheet	15SQ030-SMCDiode.pdf

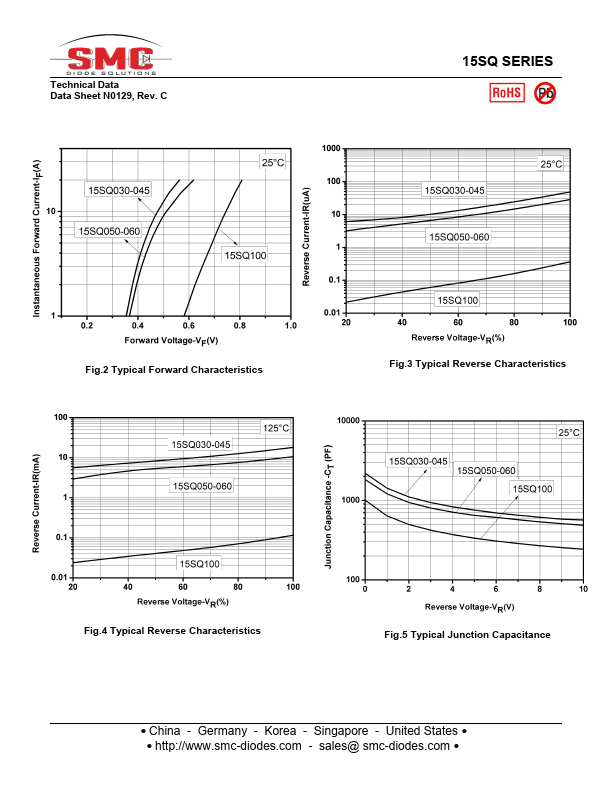

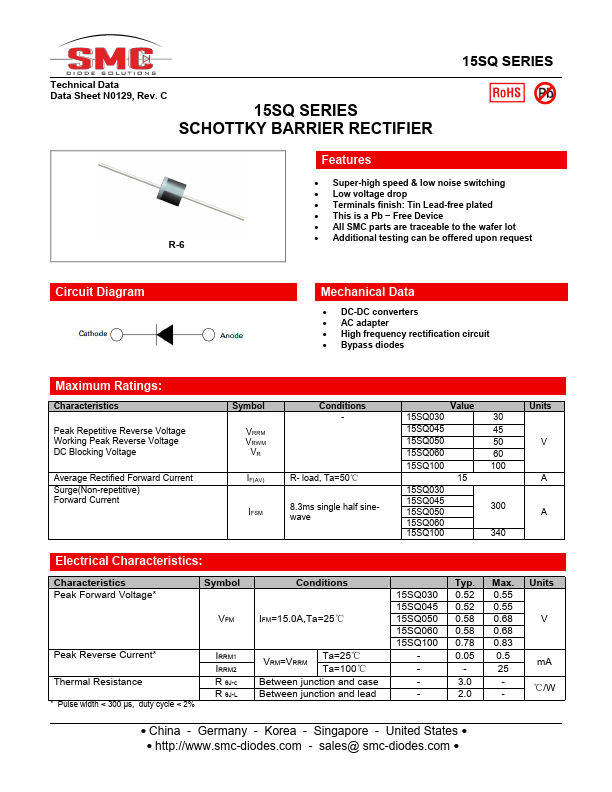

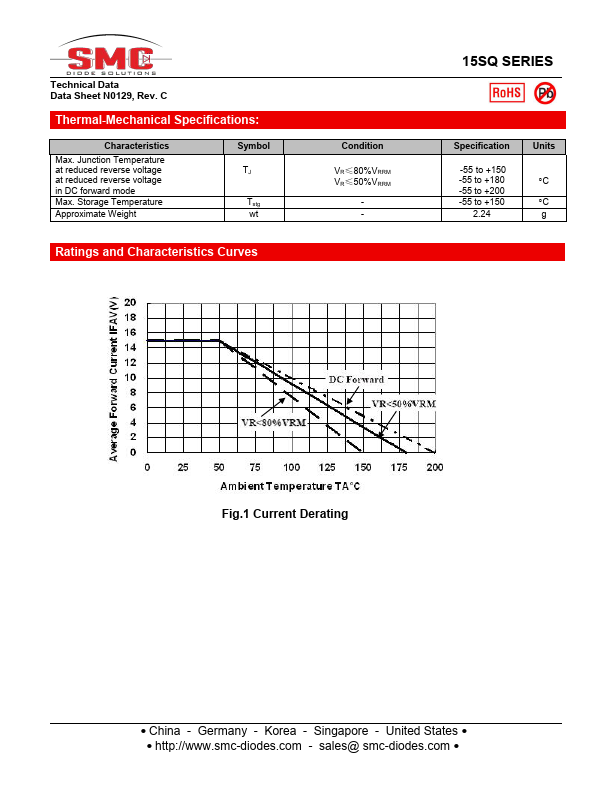

Additional preview pages of the 15SQ030 datasheet.

15SQ030 Product details

Features

Super-high speed & low noise switching.
Low voltage drop.
Terminals finish: Tin Lead-free plated.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot R-6.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
DC-DC converters.
AC adapter.
High frequency rectification circuit.
Bypass diodes Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage.
