VTF180-2F32414 - Photoelectric sensors

Name: VTF180-2F32414
SKU: VTF180-2F32414-957009

SICK

The VTF180-2F32414 by SICK is a Photoelectric sensors. Below is the official datasheet preview.

Datasheet Details

Part number	VTF180-2F32414
Manufacturer	SICK
File Size	785.45 KB
Description	Photoelectric sensors
Datasheet	VTF180-2F32414-SICK.pdf

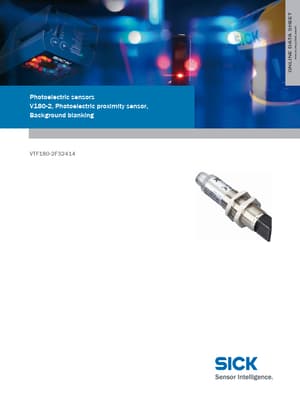

Additional preview pages of the VTF180-2F32414 datasheet.

Sensor/detection principle: Photoelectric proximity sensor, Background blanking Housing design (light emission): Cylindrical, angled Housing length: 83.8 mm Optical axis: Sensing range max. : Sensing range: radial 1 mm 130 mm 1) 1 mm 100 mm 2) Type of light: Light source: Visible red light LED 3) Wave length: 645 nm Focus: Focused approx. 7 mm at 60 mm distance Adjustment: Potentiometer, 270 ° Light spot size (distance): Ø 8 mm (100 mm) 1) 2) 3) Object with 90 % reflectance.
