RS2JBG, RS2ABG - Surface Mount Fast Recovery Rectifiers

RS2JBG Description

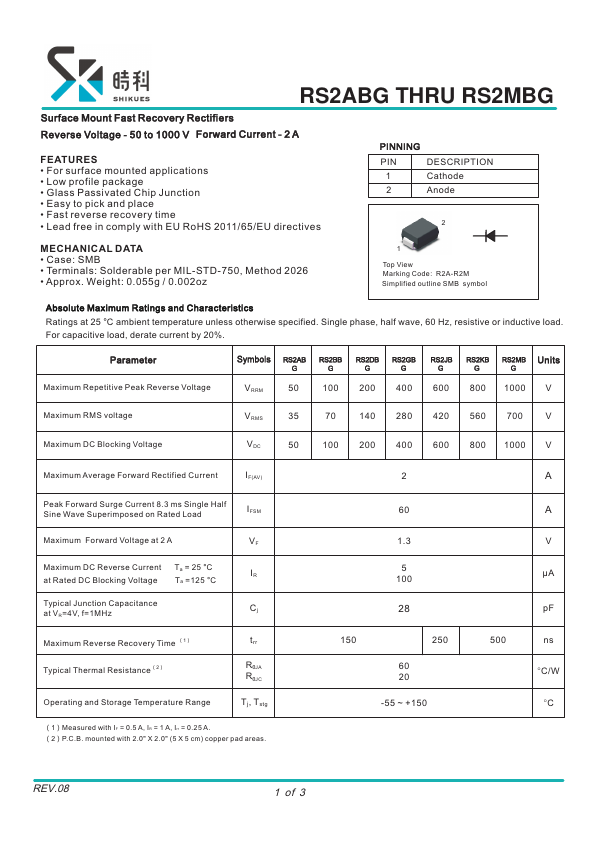

RS2ABG THRU RS2MBG Surface Mount Fast Recovery Rectifiers Reverse Voltage - 50 to 1000 V Forward Current - 2 A .
1 Cathode 2 Anode 2 MECHANICAL DATA. Case: SMB. Terminals: Solderable per MIL-STD-750, Method 2026. Approx.

RS2JBG Applications

* Low profile package
* Glass Passivated Chip Junction
* Easy to pick and place
* Fast reverse recovery time

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS2JBG, RS2ABG. Please refer to the document for exact specifications by model.

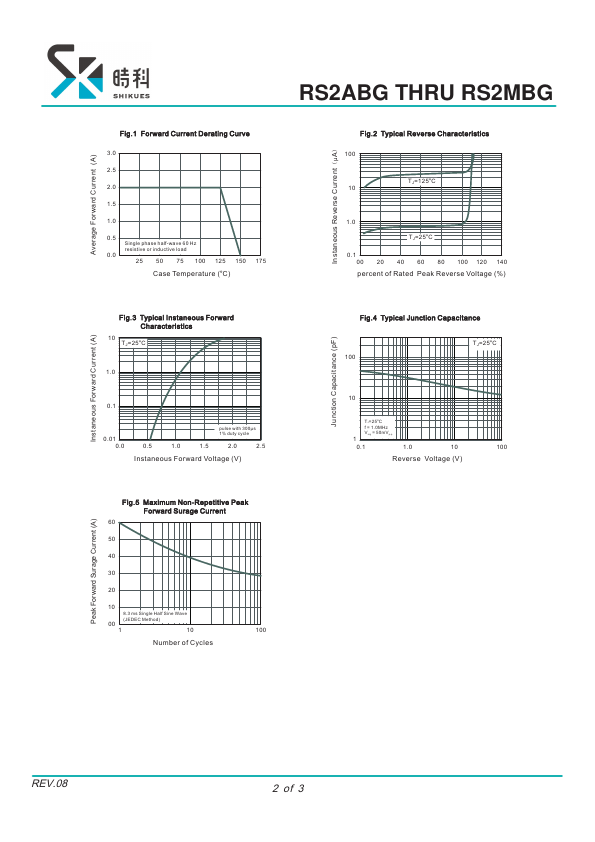

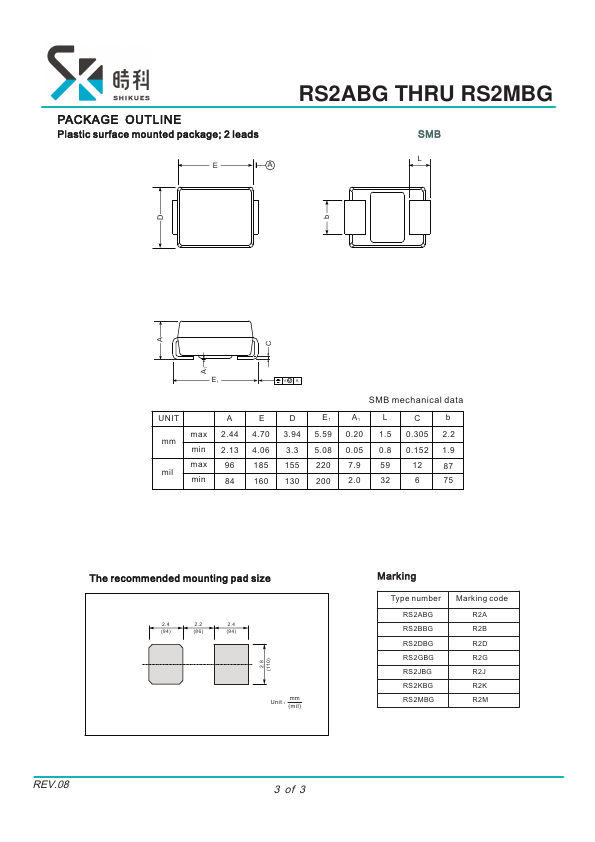

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS2JBG, RS2ABG
Manufacturer
SHIKUES
File Size
351.27 KB
Datasheet
RS2ABG-SHIKUES.pdf
Description
Surface Mount Fast Recovery Rectifiers
Note
This datasheet PDF includes multiple part numbers: RS2JBG, RS2ABG.
Please refer to the document for exact specifications by model.
