RS2JF, RS2AF - Surface Mount Fast Recovery Rectifier

RS2JF Description

RS2AF THRU RS2MF Surface Mount Fast Recovery Rectifier Reverse Voltage - 50 to 1000 V Forward Current - 2 A .

RS2JF Features

* Glass Passivated Chip Juntion

RS2JF Applications

* Low profile package
* Fast reverse recovery time Mechanical Data
* Case: SMAF
* Terminals: Solderable per MIL-STD-750, Method 2026 SMAF 4.4 4.9 3.3 3.7 2.40 2.80 1.3 1.6 0.9 1.1 0.12 0.2 All Dimensions in mm Absolute Maximum Ratings and Characteristics Ratings a

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS2JF, RS2AF. Please refer to the document for exact specifications by model.

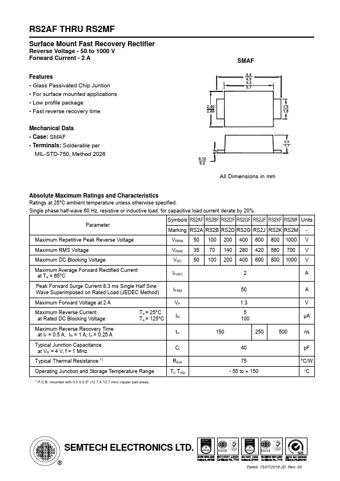

datasheet Preview Page 2

Datasheet Details

Part number
RS2JF, RS2AF
Manufacturer
SEMTECH
File Size
288.79 KB
Datasheet
RS2AF-SEMTECH.pdf
Description
Surface Mount Fast Recovery Rectifier
Note
This datasheet PDF includes multiple part numbers: RS2JF, RS2AF.
Please refer to the document for exact specifications by model.
