| Part number | 54163 |
|---|---|
| Manufacturer | SGS-THOMSON |
| File Size | 328.86 KB |
| Description | SYNCHRONOUS PRESETTABLE 4-BIT COUNTER |
| Datasheet |

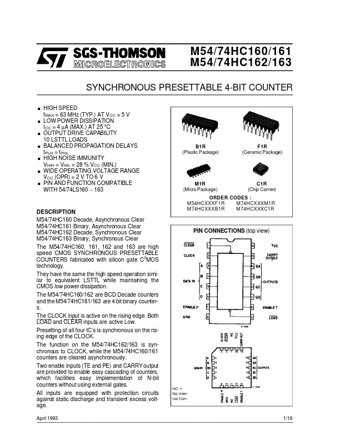

 54163 Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: 54163, 54163-SGS. Please refer to the document for exact specifications by model. |
|
|
ORDER CODES : M54HCXXXF1R M74HCXXXM1R M74HCXXXB1R M74HCXXXC1R M54/74HC160 Decade, Asynchronous Clear M54/74HC161 Binary, Asynchronous Clear M54/74HC162 Decade, Synchronous Clear M54/74HC163 Binary, Synchronous Clear PIN CONNECTIONS (top view) The M54/74HC160, 161, 162 and 163 are high speed CMOS SYNCHRONOUS PRESETTABLE COUNTERS fabricated with silicon gate C2MOS technology.They have the same the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipati
