54160 - SYNCHRONOUS PRESETTABLE 4-BIT COUNTER

Download the 54160 datasheet PDF. This datasheet also covers the 54163-SGS variant, as both devices belong to the same synchronous presettable 4-bit counter family and are provided as variant models within a single manufacturer datasheet.

Description

ORDER CODES : M54HCXXXF1R M74HCXXXM1R M74HCXXXB1R M74HCXXXC1R M54/74HC160 Decade, Asynchronous Clear M54/74HC161 Binary, Asynchronous Clear M54/74HC162 Decade, Synchronous Clear M54/74HC163 Binary, Synchronous Clear PIN CONNECTIONS (top view) The M54/74HC160, 161, 162 and 163 are high speed CMOS

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (54163-SGS-THOMSON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 54160
Manufacturer SGS-THOMSON
File Size 328.86 KB
Description SYNCHRONOUS PRESETTABLE 4-BIT COUNTER
Datasheet download datasheet 54160 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
54160 SYNCHRONOUS 4-BIT COUNTERS Texas Instruments
5416 Hex Inverting Buffers National Semiconductor
5416 HEX INVERTER BUFFERS/DRIVERS Texas Instruments
54161 4-bit binary synchronous counter ETC
54161 SYNCHRONOUS 4-BIT COUNTERS Texas Instruments

Other Datasheets by SGS-THOMSON

Part Number Description
54161 SYNCHRONOUS PRESETTABLE 4-BIT COUNTER
54162 SYNCHRONOUS PRESETTABLE 4-BIT COUNTER
54163 SYNCHRONOUS PRESETTABLE 4-BIT COUNTER
54190 4 BIT SYNCHRONOUS UP/DOWN COUNTERS
54191 4 BIT SYNCHRONOUS UP/DOWN COUNTERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

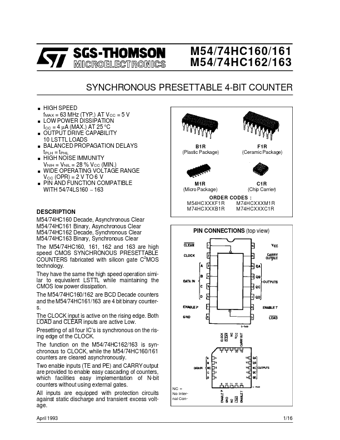

M54/74HC160/161 M54/74HC162/163 SYNCHRONOUS PRESETTABLE 4-BIT COUNTER . HIGH SPEED fMAX = 63 MHz (TYP.) AT VCC = 5 V . LOW POWER DISSIPATION ICC = 4 µA (MAX.) AT 25 °C . OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS . BALANCED PROPAGATION DELAYS tPLH = tPHL . HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) . WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V .
