SGM61103 - 300mA Buck Converter

SG Micro

The SGM61103 by SG Micro is a 300mA Buck Converter. Below is the official datasheet preview.

📥 Download Datasheet

SGM61103 300mA Buck Converter by SG Micro - Datasheet Preview — Official preview page of the SGM61103 300mA Buck Converter datasheet (SG Micro).

Datasheet Details

Part number	SGM61103
Manufacturer	SG Micro
File Size	2.52 MB
Description	300mA Buck Converter
Datasheet	SGM61103-SGMicro.pdf

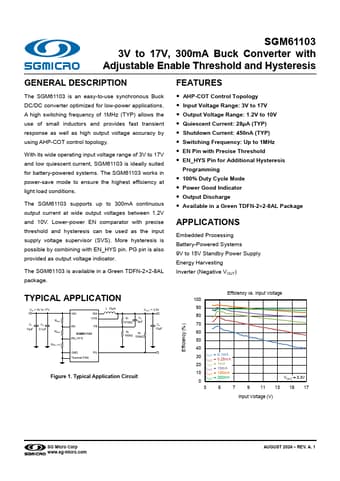

Additional preview pages of the SGM61103 datasheet.

SGM61103 Product details

Description

The SGM61103 is an easy-to-use synchronous Buck DC/DC converter optimized for low-power applications.

Features

AHP-COT Control Topology.
Input Voltage Range: 3V to 17V.
Output Voltage Range: 1.2V to 10V.
Quiescent Current: 28µA (TYP).
Shutdown Current: 450nA (TYP).
Switching Frequency: Up to 1MHz.
EN Pin with Precise Threshold.
EN_HYS Pin for Additional Hysteresis Programming.
100% Duty Cycle Mode.
Power Good Indicator.
Output Discharge.
Available in a Green TDFN-2×2-8AL Package.
