SGM5202-14 - 8-Channels Unipolar Inputs Analog-to-Digital Converter

SG Micro

The SGM5202-14 by SG Micro is a 8-Channels Unipolar Inputs Analog-to-Digital Converter. Below is the official datasheet preview.

📥 Download Datasheet

SGM5202-14 8-Channels Unipolar Inputs Analog-to-Digital Converter by SG Micro - Datasheet Preview — Official preview page of the SGM5202-14 8-Channels Unipolar Inputs Analog-to-Digital Converter datasheet (SG Micro).

Datasheet Details

Part number	SGM5202-14
Manufacturer	SG Micro
File Size	1.27 MB
Description	8-Channels Unipolar Inputs Analog-to-Digital Converter
Datasheet	SGM5202-14-SGMicro.pdf
Additional preview pages of the SGM5202-14 datasheet.

SGM5202-14 Product details

Description

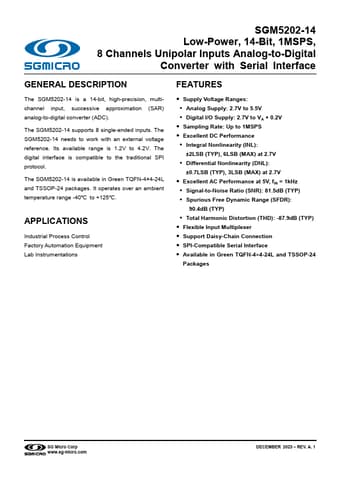

The SGM5202-14 is a 14-bit, high-precision, multichannel input, successive approximation (SAR) analog-to-digital converter (ADC).

Features

Supply Voltage Ranges:.
Analog Supply: 2.7V to 5.5V.
Digital I/O Supply: 2.7V to VA + 0.2V.
Sampling Rate: Up to 1MSPS.
Excellent DC Performance.
Integral Nonlinearity (INL): ±2LSB (TYP), 6LSB (MAX) at 2.7V.
Differential Nonlinearity (DNL): ±0.7LSB (TYP), 3LSB (MAX) at 2.7V.
Excellent AC Performance at 5V, fIN = 1kHz.
Signal-to-Noise Ratio (SNR): 81.5dB (TYP).
Spurious Free Dynamic Range (SFDR): 90.4dB (TYP).
Total Harmonic Distortion (THD).
