SGM42507 - 7.5V H-Bridge Driver

SG Micro

The SGM42507 by SG Micro is a 7.5V H-Bridge Driver. Below is the official datasheet preview.

📥 Download Datasheet

SGM42507 7.5V H-Bridge Driver by SG Micro - Datasheet Preview — Official preview page of the SGM42507 7.5V H-Bridge Driver datasheet (SG Micro).

Datasheet Details

Part number	SGM42507
Manufacturer	SG Micro
File Size	784.74 KB
Description	7.5V H-Bridge Driver
Datasheet	SGM42507-SGMicro.pdf

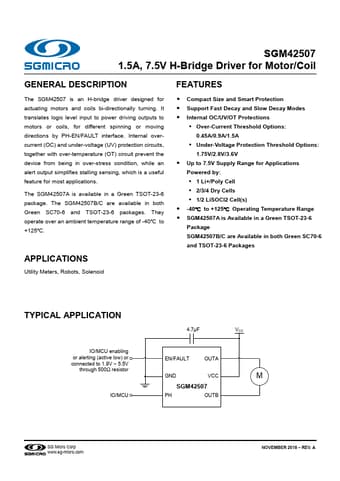

Additional preview pages of the SGM42507 datasheet.

SGM42507 Product details

Description

The SGM42507 is an H-bridge driver designed for actuating motors and coils bi-directionally turning.

Features

Compact Size and Smart Protection.
Support Fast Decay and Slow Decay Modes.
Internal OC/UV/OT Protections.
Over-Current Threshold Options: 0.45A/0.9A/1.5A.
Under-Voltage Protection Threshold Options: 1.75V/2.8V/3.6V.
Up to 7.5V Supply Range for.
