SGM42406 - 8-Channel Serial Interface Low-side Driver

SG Micro

The SGM42406 by SG Micro is a 8-Channel Serial Interface Low-side Driver. Below is the official datasheet preview.

📥 Download Datasheet

SGM42406 8-Channel Serial Interface Low-side Driver by SG Micro - Datasheet Preview — Official preview page of the SGM42406 8-Channel Serial Interface Low-side Driver datasheet (SG Micro).

Datasheet Details

Part number	SGM42406
Manufacturer	SG Micro
File Size	535.10 KB
Description	8-Channel Serial Interface Low-side Driver
Datasheet	SGM42406-SGMicro.pdf

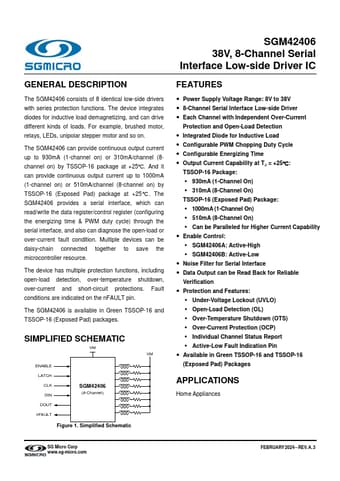

Additional preview pages of the SGM42406 datasheet.

SGM42406 Product details

Description

The SGM42406 consists of 8 identical low-side drivers with series protection functions.

Features

Power Supply Voltage Range: 8V to 38V.
8-Channel Serial Interface Low-side Driver.
Each Channel with Independent Over-Current Protection and Open-Load Detection.
Integrated Diode for Inductive Load.
Configurable PWM Chopping Duty Cycle.
Configurable Energizing Time.
Output Current Capability at TJ = +25℃: TSSOP-16 Package:.
930mA (1-Channel On).
310mA (8-Channel On) TSSOP-16 (Exposed Pad) Package:.
1000mA (1-Channel On).
510mA (8-Channel On.
